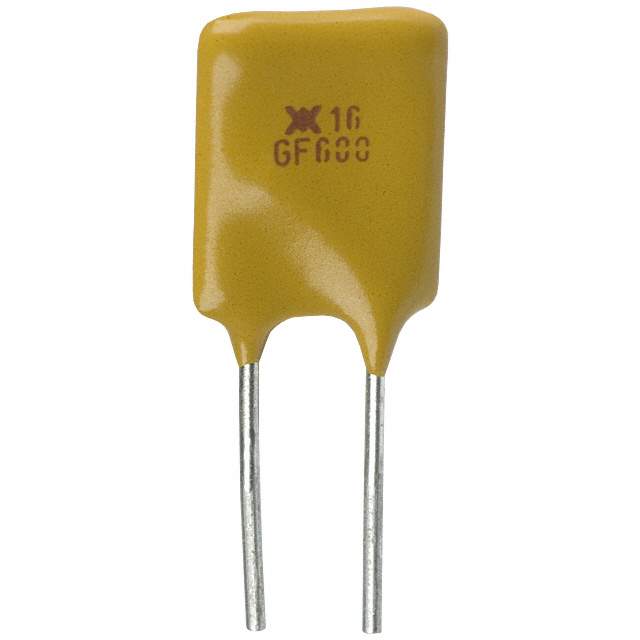

RF3242-000 Real Image
Same model may have multiple batches, images only for reference.

RF3242-000

Part No RF3242-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 6A(hold) 10.2A(trip) 16VDC 100A 2.8W 3.3s 0.01Ohm Radial 10.7 X 3 X 17.1mm T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Height - Seated (Max) 17.0942 mm
Hold Current 6 A
Lead Pitch 5.0546 mm
Length 10.2108 mm
Max Current Rating 100 A
Mount Through Hole
RoHS Compliant
Time to Trip 3.3 s
Trip Current 10.2 A
Width 2.4892 mm
Win Source Part Number 1088093-RF3242-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian RF3242-000 CAD Model

Description

The Littelfuse Inc. RF3242-000 PTC resettable fuse is a high-quality electronic component that is essential for various electronic devices. With a low popularity rating, this fuse is a reliable and efficient choice for your electronic needs. The fuse has a manufacturer part number of 1088093 and belongs to the PTC resettable fuses category. The fuse is manufactured by Littelfuse Inc. and has a length of 10.2108 mm, a height of 17.0942 mm, and a width of 2.4892 mm. It has a trip current of 10.2 A and a hold current of 6 A. The fuse is RoHS compliant and has a max current rating of 100 A.
