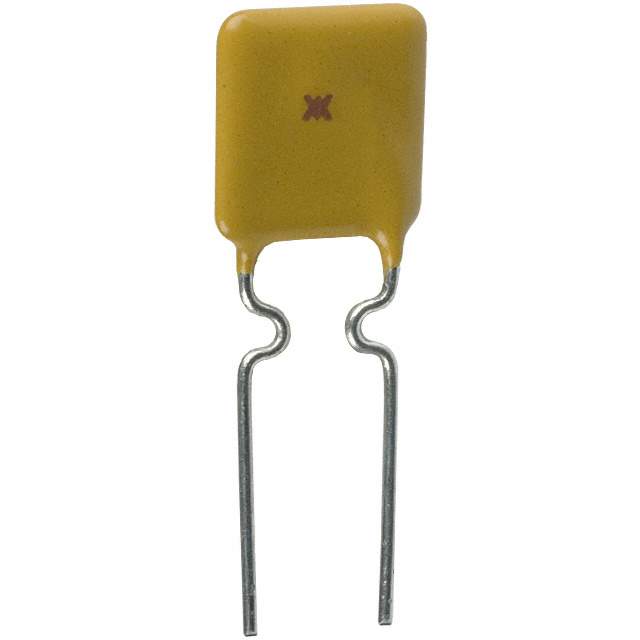

RF2559-000 Real Image
Same model may have multiple batches, images only for reference.

RF2559-000

Part No RF2559-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 1.85A(hold) 3.7A(trip) 30V 100A 1W 8.7s 0.03Ohm Radial 10.2 X 3 X 15.2mm Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Height - Seated (Max) 15.6972 mm
Hold Current 1.85 A
Lead Pitch 5.0546 mm
Max Current Rating 100 A
Mount Through Hole
RoHS Compliant
Time to Trip 8.7 s
Trip Current 3.7 A
Width 2.9972 mm
Win Source Part Number 964268-RF2559-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian RF2559-000 CAD Model

Description

The Littelfuse Inc. RF2559-000 is a PTC resettable fuse with a trip current of 3.7A and a hold current of 1.85A.

  • Trip Current: 3.7A
  • Hold Current: 1.85A
  • Time to Trip: 8.7s
  • Maximum Current Rating: 100A
  • Package: Radial
  • Lead Pitch: 5.0546mm
  • Mounting: Through-hole
  • RoHS Compliant: Yes
  • Height: 15.6972mm
  • Width: 2.9972mm
  • Popularity: Low popularity
  • Supply and Demand: Shortage
