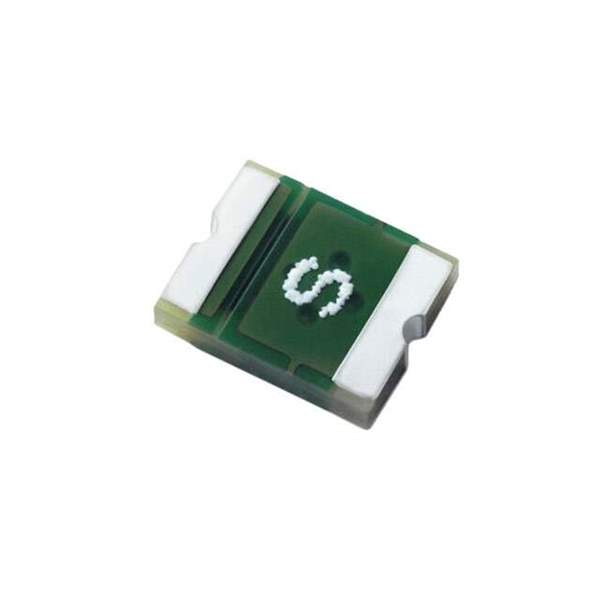

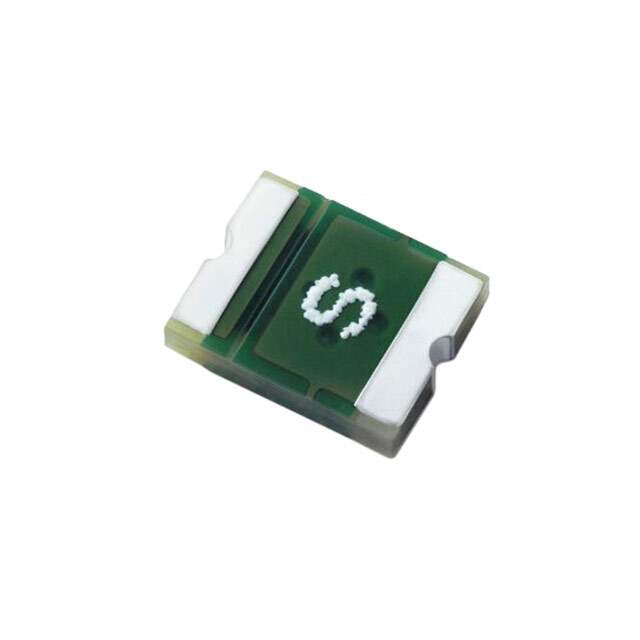

The RF2515-000 is a robust resettable fuse manufactured by Littelfuse Inc. This PolySwitch device is designed to protect electronic circuits against overcurrent conditions. It is a polymeric positive temperature coefficient (PPTC) device, also known as a resettable fuse, which increases its resistance dramatically when an overcurrent event occurs, thus limiting the current and protecting the circuit. Once the fault condition is removed and the device cools down, it returns to its low-resistance state, allowing normal circuit operation to resume.

Applications

• USB Port Protection: Protects USB ports from overcurrent caused by faulty devices or excessive current draw.
• HDMI Port Protection: Safeguards HDMI ports in televisions, monitors, and other multimedia devices.
• Power Supply Protection: Prevents damage to power supplies due to short circuits or overloading.
• Game Consoles: Protection of various ports and internal circuits within gaming consoles.
• Mobile Devices: Used in smartphones and tablets to protect charging circuits and other sensitive components.

Features

• Resettable Functionality: Automatically resets after the overcurrent condition is removed, eliminating the need for manual replacement.
• Compact Size: Designed for space-constrained applications.
• Low Resistance: Offers minimal impact on circuit performance under normal operating conditions.
• Fast Trip Time: Quickly responds to overcurrent events, minimizing potential damage.
• Agency Approvals: Typically certified to meet industry safety standards (e.g., UL, CSA, TUV).

Benefits

• Enhanced Circuit Protection: Prevents damage to sensitive electronic components from overcurrent faults.
• Reduced Downtime: Automatic reset functionality minimizes downtime and maintenance costs.
• Improved Product Reliability: Protects against component failure due to overcurrent conditions.
• Cost-Effective: Eliminates the need for fuse replacement, reducing long-term operational costs.
• Safety Compliance: Helps products meet required safety standards and regulations.

Additional Details

The RF2515-000 features a hold current and trip current that define its operating characteristics. The hold current is the maximum current the device can carry without tripping, while the trip current is the level at which it will activate and limit the current flow. The exact specifications, including voltage rating, trip time, and resistance values, should be verified in the manufacturer's datasheet to ensure proper application.

PPTC devices like the RF2515-000 are also less prone to nuisance tripping compared to traditional fuses, making them suitable for applications where brief current spikes are common.
