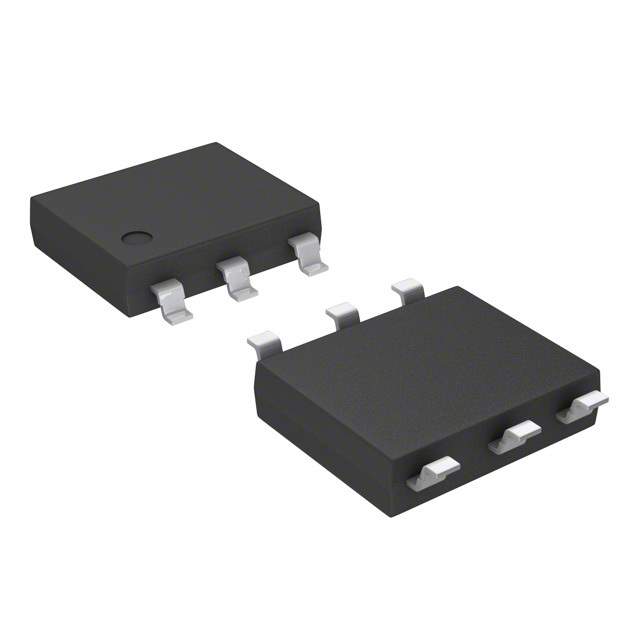

P0304UCLRP Real Image
Same model may have multiple batches, images only for reference.

P0304UCLRP

Part No P0304UCLRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description SIDACTOR 4CHP 25/50V 400A MS013 / Thyristor Surge Protection Devices 50V 30A 6-Pin Modified MS-013 T/R
Datasheet
P0304UCLRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series SIDACtor
Packaging Reel package
Voltage - Breakover 40V, 80V
Voltage - Off State 25V, 50V
Voltage - On State 4V
Current - Peak Pulse (8/20μs) 400A
Current - Peak Pulse (10/1000μs) 100A
Current - Hold (Ih) 50mA
Number of Elements 4
Capacitance 145pF, 250pF
Mounting SMD
Package 6-SMD, Gull Wing
Win Source Part Number 791076-P0304UCLRP
Popularity Medium
Supply and Demand Status Limited
Family Name P0304UC
Introduction Date December 01, 2005
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian P0304UCLRP CAD Model

Description

The Littelfuse Inc. P0304UCLRP is a SIDACtor component that comes in a 6-SMD, Gull Wing package.

  • Package: 6-SMD, Gull Wing
  • Capacitance: 145pF or 250pF
  • Voltage-Off State: 25V or 50V
  • Voltage-Breakover: 40V or 80V
  • Voltage-On State: 4V
  • Current-Peak Pulse (10/1000μs): 100A
  • Current-Peak Pulse (8/20μs): 400A
  • Elements: 4
  • Current-Hold (Ih): 50mA
  • Series: P0304UC
  • Country of Origin: China
  • Estimated EOL Date: 2025
