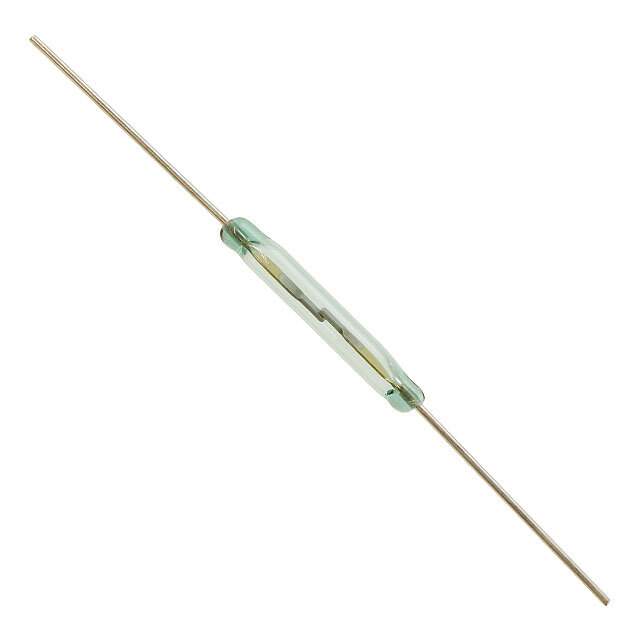

MRPR-3-17-23 Real Image
Same model may have multiple batches, images only for reference.

MRPR-3-17-23

Part No MRPR-3-17-23
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 1.1A 140V
Datasheet
MRPR-3-17-23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Obsolete(EOL)
Type Glass Body
Circuit SPST-NO
Operate Range 17 to 23AT
Current - Switching 1.1A (AC), 1.5A (DC)
Voltage - Switching AC 140V
Voltage - Switching DC 200V
Power - Rated 50W
Operate Time 0.75ms
Release Time 0.3ms
Mounting Through Hole
Termination Style Axial
Length - Overall 2.230" (56.64mm)
Size - Body 0.112" Dia x 0.775" L (2.84mm x 19.69mm)
Temperature Range - Operating -40°C to 125°C
Capacitance 0.2pF
Current - Carry 3A (DC)
Win Source Part Number 101293-MRPR-3-17-23
Ultra Librarian 3D Model Ultra Librarian MRPR-3-17-23 CAD Model

Description

The Littelfuse Inc. 101293-MRPR-3-17-23 is a glass-body switch with axial termination style. It is mounted through hole and has an SPST-NO circuit.

  • Capacitance: 0.2pF
  • Operate Time: 0.75ms
  • Release Time: 0.3ms
  • Overall Length: 2.230" (56.64mm)
  • Rated Power: 50W
  • Operate Range: 17 to 23AT
  • Category: switch
  • Status: now obsolete (EOL)
  • Operating Temperature Range: -40°C to 125°C.
