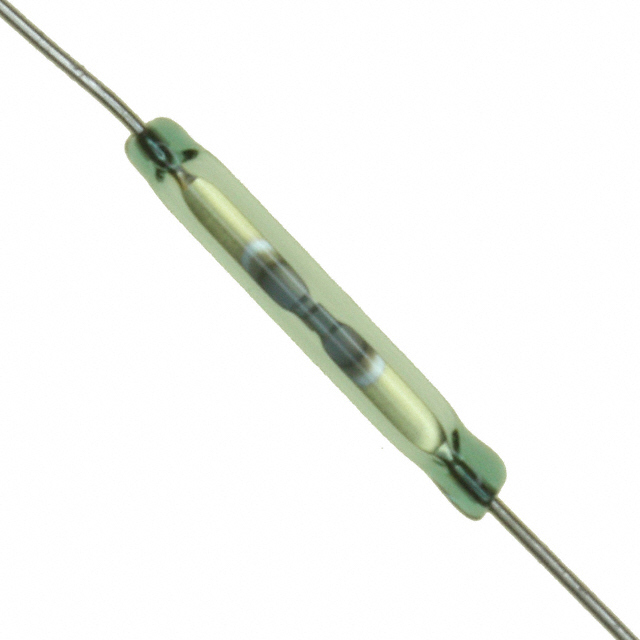

Same model may have multiple batches, images only for reference.
MDRR-DT-15-30-F Littelfuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MDRR-DT-15-30-F

Part No MDRR-DT-15-30-F
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPDT 180MA 120V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Glass Body Reed
Circuit SPDT
Operate Range 15 ~ 30AT
Current - Switching 180mA (AC), 250mA (DC)
Voltage - Switching AC 120 V
Voltage - Switching DC 175 V
Power - Rated 5W
Operate Time 0.7 ms
Release Time 1 ms
Mounting Type Through Hole
Termination Style Axial
Length - Overall 2.034" (51.66mm)
Size - Body 0.100" Dia x 0.580" L (2.54mm x 14.73mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 1 pF
Current - Carry 1.5A (DC)
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1599434-MDRR-DT-15-30-F
Ultra Librarian 3D Model Ultra Librarian MDRR-DT-15-30-F CAD Model
