Same model may have multiple batches, images only for reference.

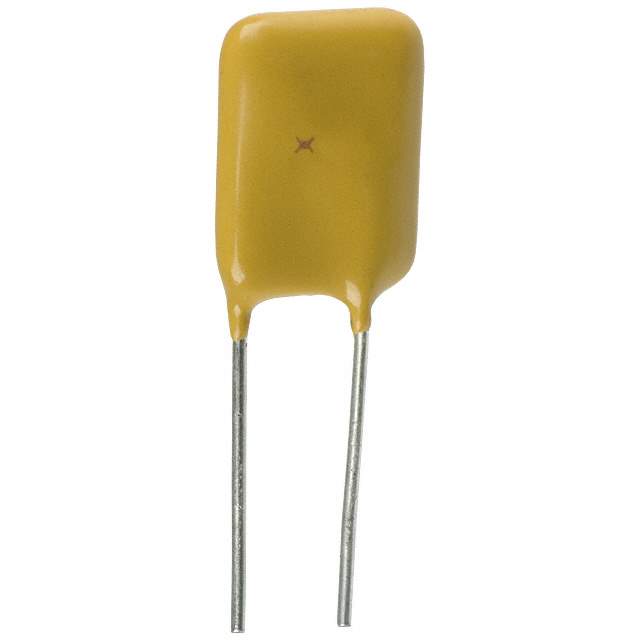

LVR040S Real Image
Same model may have multiple batches, images only for reference.

LVR040S

Part No LVR040S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch PTC Devices Overcurrent Protection Device | PTC RESET FUSE 240V 400MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 5.5A
Current - Hold (Ih) (Maximum) 400mA
Current - Trip (It) 900mA
Time to Trip 24s
Resistance - Initial (Ri) (Minimum) 600 mOhms
Resistance - Post Trip (R1) (Maximum) 1.9 Ohms
Temperature Range - Operating -20°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.453" L x 0.150" W (11.50mm x 3.80mm)
Height - Seated (Maximum) 0.768" (19.50mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Win Source Part Number 1209632-LVR040S
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LVR040S CAD Model

Description

The LVR040S from Littelfuse Inc. is a polymeric type of through-hole mounting style circuit protection component.

  • Maximum Voltage: 240V
  • Current: 5.5A
  • Current Trip: 900mA
  • Time to Trip: 24 seconds
  • Resistance Initial: 600 mOhms
  • Resistance Post-Trip: 1.9 Ohms
  • Approvals: CQC, CSA, TUV, and UL
  • Lead Spacing: 0.200" (5.08mm)
  • Height Seated Maximum: 0.768" (19.50mm)
  • Supply and Demand Status: Sufficient
  • Manufacturer Pack Quantity: 500
  • Dimension: 0.453" L x 0.150" W (11.50mm x 3.80mm)
