Same model may have multiple batches, images only for reference.

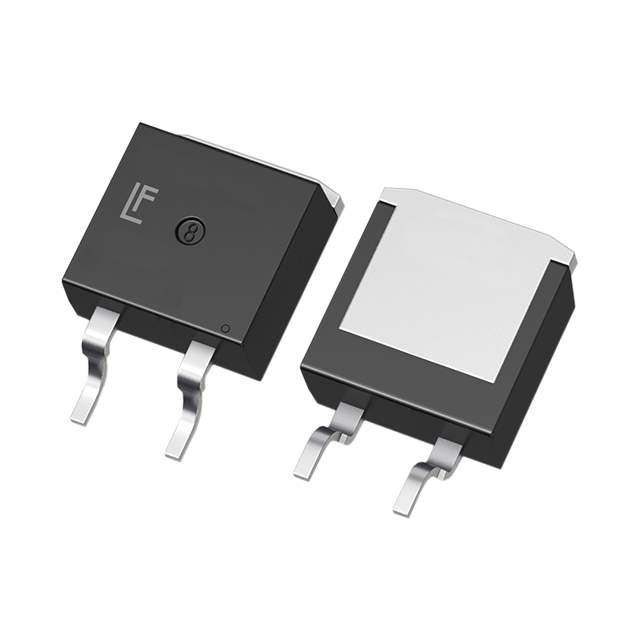

LSIC2SD065D06A Real Image
Same model may have multiple batches, images only for reference.

LSIC2SD065D06A

Part No LSIC2SD065D06A
Manufacturer Littelfuse Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY SIC 650V 6A  /  Diode Silicon Carbide Schottky 650 V 18.5A (DC) Surface Mount TO-263 (D²Pak)
Datasheet
LSIC2SD065D06A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, GEN2
Package Tape & Reel
Product Status Obsolete
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 18.5A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 6 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 50 µA @ 650 V
Capacitance @ Vr, F 300pF @ 1V, 1MHz
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263 (D2Pak)
Operating Temperature - Junction -55°C ~ 175°C
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Other Names LSIC2SD065D06ADKR,LSIC2SD065D06ATR,-LSIC2SD065D06A,LSIC2SD065D06ACT
Standard Package 800
Win Source Part Number 1071154-LSIC2SD065D06A
Ultra Librarian 3D Model Ultra Librarian LSIC2SD065D06A CAD Model

Description

The 1071154-LSIC2SD065D06A is a silicon carbide Schottky diode from Littelfuse Inc.

  • Application: Designed for use in rectification applications
  • Maximum Reverse Voltage: 650V
  • Average Rectified Current: 18.5A
  • Recovery Time: No recovery time of greater than 500mA (Io), making it ideal for high-speed applications
  • Forward Voltage: 1.8V @ 6A
  • Reverse Recovery Time (trr): 0ns
  • Operating Temperature Range: -55°C to 175°C
  • Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
  • Mounting Technology: SMD (SMT)
  • Status: Obsolete
