Same model may have multiple batches, images only for reference.

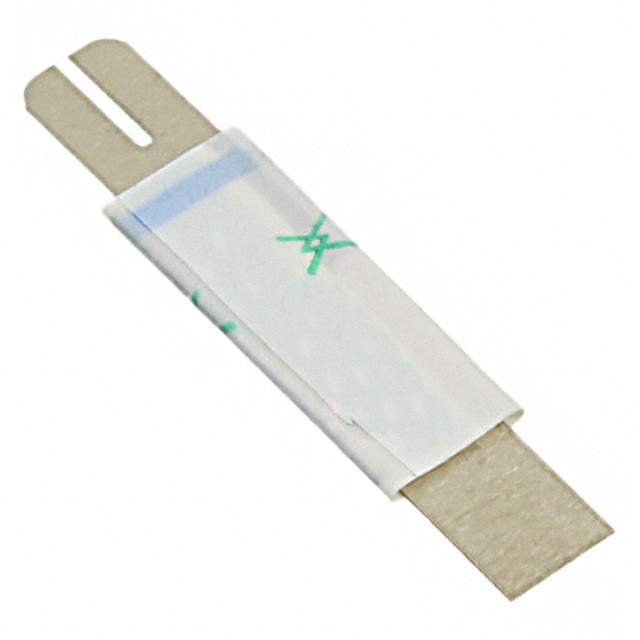

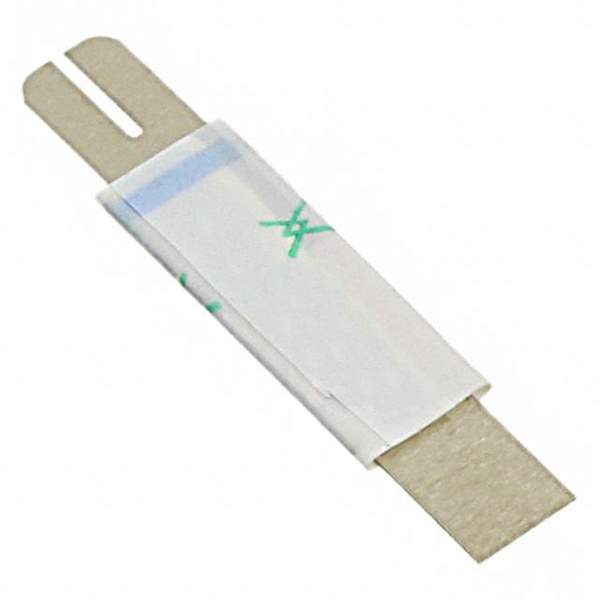

LR4-260SF Real Image
Same model may have multiple batches, images only for reference.

LR4-260SF

Part No LR4-260SF
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch®PTC Devices | PTC RESET FUSE 15V 2.6A STRAP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 15V
Current - Max 100A
Current - Hold (Ih) (Maximum) 2.6A
Current - Trip (It) 5.8A
Time to Trip 5s
Resistance - Initial (Ri) (Minimum) 20 mOhms
Resistance - Post Trip (R1) (Maximum) 63 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style User Defined
Manufacturer Package Strap
Parts Dimension 0.866" L x 0.205" W (22.00mm x 5.20mm)
Approvals CSA, TUV, UL
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1204478-LR4-260SF
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LR4-260SF CAD Model

Description

This is a polymeric circuit protection device manufactured by Littelfuse Inc.

  • Manufacturer Part Number: 1204478-LR4-260SF
  • Voltage Rating: 15V
  • Current Rating: 100A
  • Current Trip (It): 5.8A
  • Time to Trip: 5s
  • Resistance - Initial (Ri) (minimum): 20 mOhms
  • Resistance - Post Trip (R1) (maximum): 63 mOhms
  • Manufacturer Package: Strap
  • Packaging: Bulk
  • Approvals: CSA, TUV, and UL
  • Manufacturer Homepage: www.macom.com
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.866” L x 0.205” W (22.00mm x 5.20mm)
  • Lead Spacing: Not specified
  • Operating Temperature Range: -40°C to 85°C
