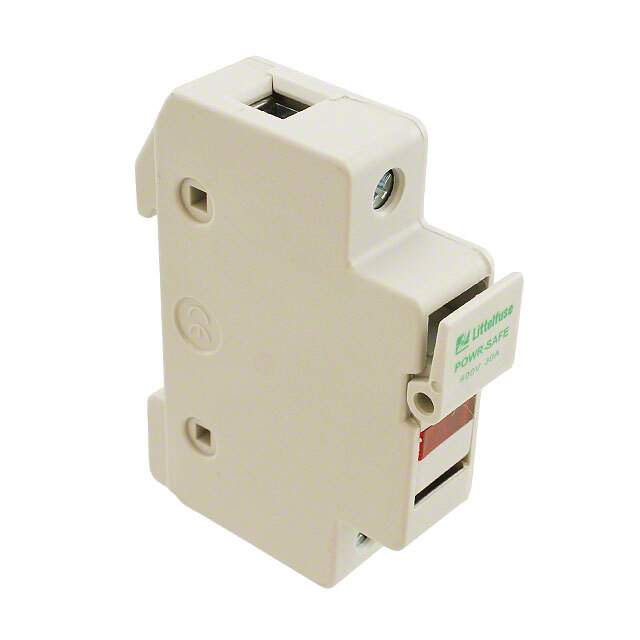

LPSM0001ZXID Real Image
Same model may have multiple batches, images only for reference.

LPSM0001ZXID

Part No LPSM0001ZXID
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 600V 30A DIN RAIL / Fuse Holder 30 A 600V 1 Circuit Cartridge DIN Rail
Datasheet
LPSM0001ZXID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Littelfuse Inc.
Series POWR-GARD® LPSM
Package Box
Mounting Type DIN Rail
Fuse Size 0.394" Dia x 1.496" L (10mm x 38mm)
Current Rating (Amps) 30 A
For Use With/Related Products 5AG, 13/32" x 1-1/2" (Midget)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 600V
Termination Style Screw Terminal, Pressure Plate
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Other Names F5274,LPSM-ID CH,LPSM0001ZXID-ND,LPSM001ID,-LPSM0001ZXID
Standard Package 1
Win Source Part Number 1093680-LPSM0001ZXID
Ultra Librarian 3D Model Ultra Librarian LPSM0001ZXID CAD Model

Description

The Littelfuse Inc. POWR-GARD® LPSM series fuseholder is a screw terminal, pressure plate type holder designed to be compatible with 5AG, 13/32" x 1-1/2" (Midget) cartridge fuses.

  • Product Name: LPSM0001ZXID
  • Manufacturer: Littelfuse Inc.
  • Series: POWR-GARD® LPSM
  • Terminal Type: Screw Terminal, Pressure Plate
  • Fuse Size Compatibility: 5AG, 13/32" x 1-1/2" (Midget) Cartridge Fuses
  • Current Rating: 30 A
  • Voltage Rating: 600V
  • Mounting: DIN Rail
  • Number of Circuits: 1
  • Package: Box
  • Alternative Parts: F5274, LPSM-ID CH, LPSM001ID, -LPSM0001ZXID
