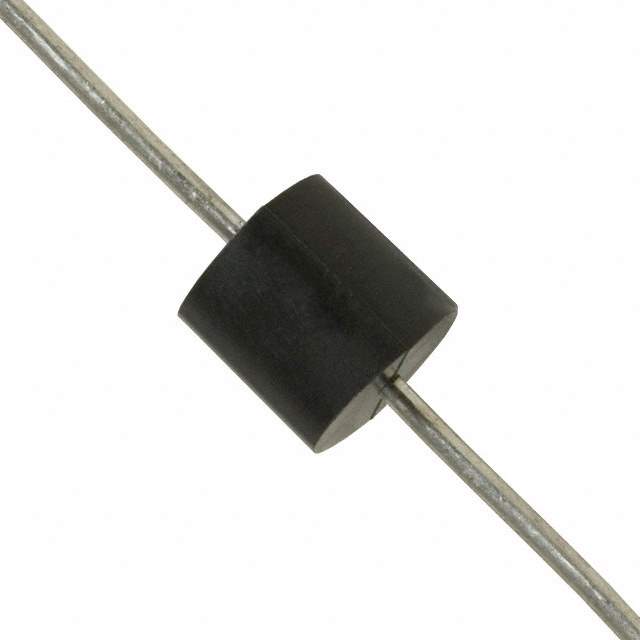

TP5KP22CA Real Image
Same model may have multiple batches, images only for reference.

TP5KP22CA

Part No TP5KP22CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 22VWM 35.5VC P600 / 35.5V Clamp 143.7A Ipp Tvs Diode Through Hole P600
Datasheet
TP5KP22CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, TP5KP
Package Tape & Reel (TR) Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 143.7A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 1340328-TP5KP22CA
Ultra Librarian 3D Model Ultra Librarian TP5KP22CA CAD Model

Description

The Littelfuse TP5KP22CA is a zener type transient voltage suppressor diode.

  • Type: Zener TVS Diode
  • Channel: Bidirectional
  • Voltage Rating (Reverse Standoff): 22V
  • Breakdown Voltage (Min): 24V
  • Power Peak Pulse: 5000W (5kW)
  • Current Peak Pulse (10/1000µs): 143.7A
  • Package Type: P600, Axial
  • Mounting Type: Through-Hole
  • Application: Automotive
  • Temperature Range: -55°C to 150°C (TJ)
  • Supplier Device Package: P600
  • Voltage Clamping (Max) @ Ipp: 35.5V
  • MSL Level: Level 1 (Unlimited)
  • REACH: Unaffected
