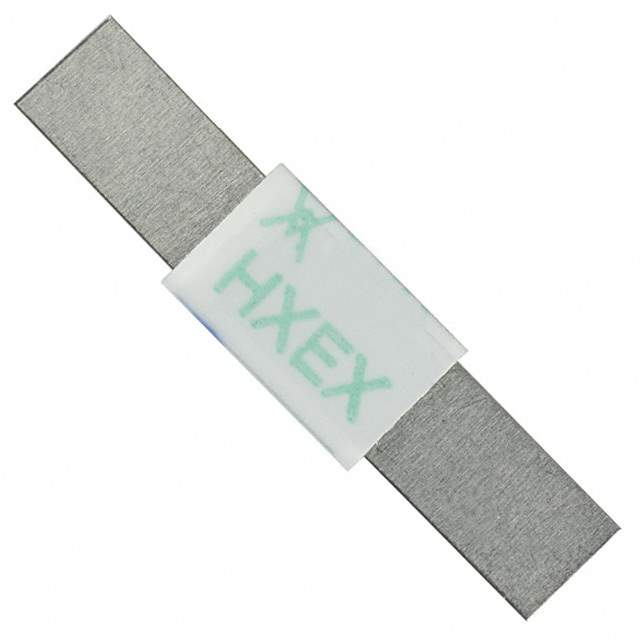

Same model may have multiple batches, images only for reference.

SRP120

Name: SRP120
Brand: Littelfuse Inc.
SKU: 1301590
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SRP120
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Datasheet	SRP120 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, SRP
Package	Bulk
Product Status	Obsolete
Type	Polymeric
Voltage - Max	15V
Current - Max	100 A
Current - Hold (Ih) (Max)	1.2 A
Current - Trip (It)	2.7 A
Time to Trip	5 s
Resistance - Initial (Ri) (Min)	85 mOhms
Resistance - Post Trip (R1) (Max)	220 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	User Defined
Package / Case	Strap
Dimension	0.827" L x 0.199" W (21.00mm x 5.05mm)
Thickness (Max)	0.039" (1.00mm)
Approval Agency	CSA, TUV, UL
Standard Package	2,000
RoHS Status	RoHS non-compliant
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1301590-SRP120
Ultra Librarian 3D Model	Ultra Librarian SRP120 CAD Model

Alternative Products

Description

The Littelfuse Inc. SRP120 is a PolySwitch SRP resettable fuse with a maximum voltage of 15V and a maximum current of 100 A.

Current Rating: 1.2 A Ih
Current Trip: 2.7 A
Time to Trip: 5 s
Package: Bulk
Dimension: 0.827" L x 0.199" W (21.00mm x 5.05mm)
Initial Resistance: 85 mOhms
Post-Trip Resistance: 220 mOhms
Designed For: Use in circuit protection applications
Approvals: CSA, TUV, and UL
