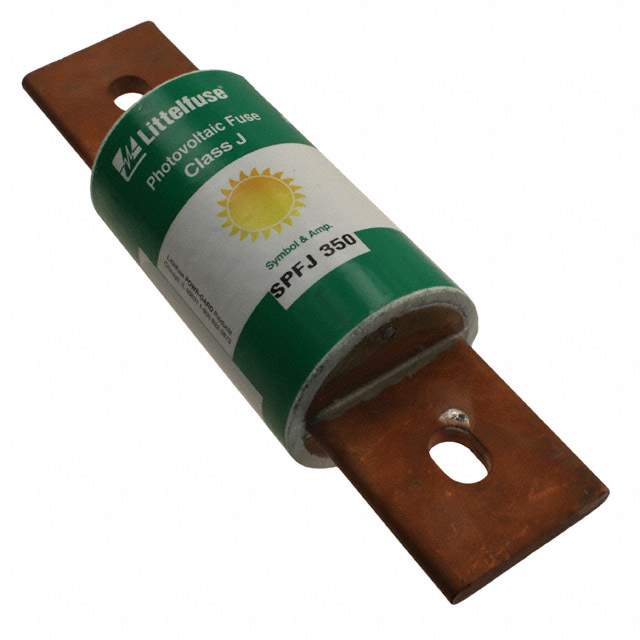

SPFJ350.X

Part No SPFJ350.X
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® SPFJ
Mounting Type Holder
Fuse Type Cartridge
Current Rating (Amps) 350A
Voltage Rating - AC 600 V
Voltage Rating - DC 1 kV
Response Time Fast Blow
Applications Solar (Photovoltaic)
Class J
Approval Agency CE, cULus, UL, VDE
Breaking Capacity @ Rated Voltage 200kA AC, 10kA DC
Package / Case Cylindrical, Blade Terminals
Dimension 2.000" Dia x 7.126" L (50.80mm x 181.00mm)
Melting I2t 109799
DC Cold Resistance 0.285 mOhms
Other Names F4141,-SPFJ350.X,SPFJ 350,SPFJ350X
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1302315-SPFJ350.X
Ultra Librarian 3D Model Ultra Librarian SPFJ350.X CAD Model

Description

The POWR-GARD® SPFJ series from Littelfuse Inc. is a cartridge fuse designed for Solar (Photovoltaic) applications.

  • Voltage Rating - AC: 600 V
  • Voltage Rating - DC: 1 kV
  • Breaking Capacity: 200kA AC, 10kA DC @ rated voltage
  • Current Rating: 350A
  • DC Cold Resistance: 0.285 mOhms
  • Melting I2t: 109799
  • Fuse Type: Fast blow
  • Class: J
  • Package / Case: Cylindrical, blade terminals
  • Mounting: Holder
  • ECCN: EAR99 compliant
  • Application: Electrical, specialty fuses
