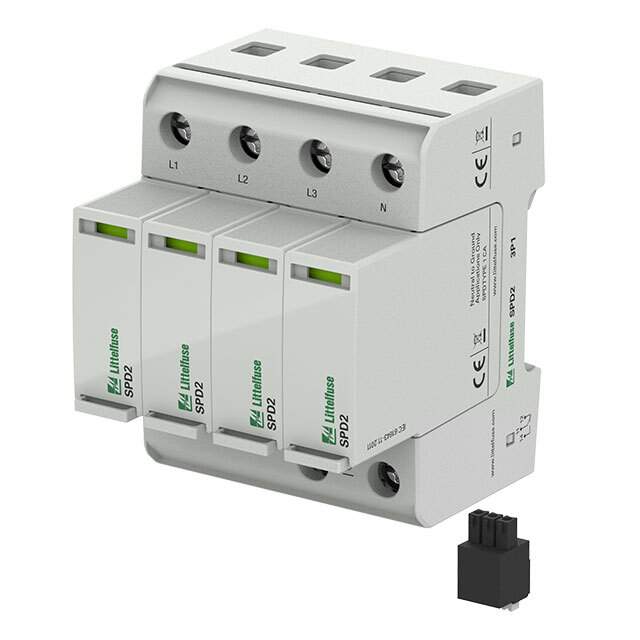

SPD2-300-3P1-R Real Image
Same model may have multiple batches, images only for reference.

SPD2-300-3P1-R

Part No SPD2-300-3P1-R
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description SPD MOD 3P+1 300VAC TYPE 1+2
Datasheet
SPD2-300-3P1-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series SPD2 3P+1
Type Type 1, Type 2
Form Base + Module
Number of Poles 3
Voltage - Continuous Operating (Max) (MCOV) 305VAC
Current - Discharge (Nom) (8/20µS) 40 kA
Current - Discharge (Max) (8/20µS) 65 kA
Current - Short Circuit Rating (SCRR) 150 kA
Voltage - Protection Rating (VPR) 1 kV
Voltage - Protection Level (VP) (2416) 1.5 kV
Temperature Range - Operating -40°C ~ 80°C
Features Remote Signaling Contacts, Thermally Protected
Mounting Type DIN Rail
Approval Agency cURus, UL, VDE
Other Names F12055,-1024-SPD2-300-3P1-R
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1294356-SPD2-300-3P1-R
Ultra Librarian 3D Model Ultra Librarian SPD2-300-3P1-R CAD Model

Description

The Littelfuse Inc. 1294356-SPD2-300-3P1-R is a high-quality electronic component that is used in various applications.

  • Category: Circuit Protection>TVS - Surge Protection Devices (SPDs)
  • Series: SPD2 3P+1
  • Component Type: Type 1, Type 2
  • Remote Signaling Contacts: Yes
  • Thermally Protected: Yes
  • Standard Package: 1
  • Poles: 3
  • Form: Base + Module
  • Mounting Type: DIN Rail
  • Temperature Range: -40°C ~ 80°C
  • MSL Level: 1 (Unlimited)
  • Other Names: F12055,-1024-SPD2-300-3P1-R
  • Approvals: cURus, UL, VDE
  • Voltage - Continuous Operating (Max) (MCOV): 305VAC
