Same model may have multiple batches, images only for reference.

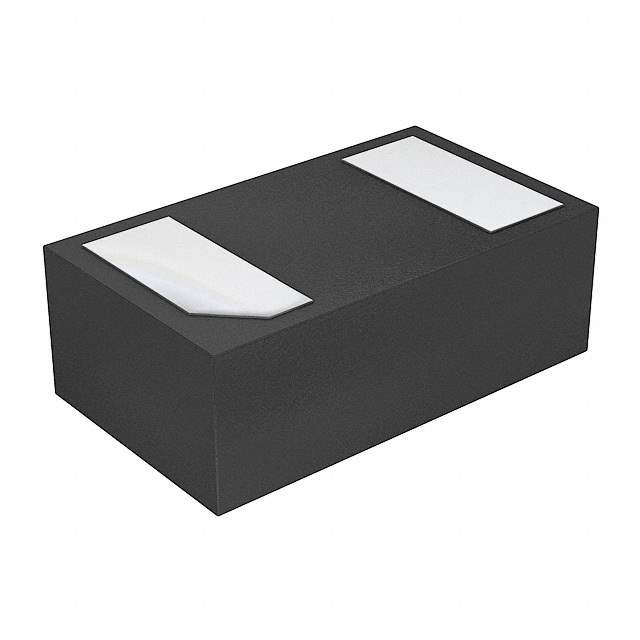

SP0402U-ULC-01ETG Real Image
Same model may have multiple batches, images only for reference.

SP0402U-ULC-01ETG

Part No SP0402U-ULC-01ETG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SPA®
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 9V (Typ)
Voltage - Clamping (Max) @ Ipp 9.2V
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.2pF @ 1MHz
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 0402 (1006 Metric)
Supplier Device Package 0402/2DFN (1x0.60)
Other Names 18-SP0402U-ULC-01ETGCT,F9747TR,18-SP0402U-ULC-01ETGTR,F9747TR,18-SP0402U-ULC-01ETGDKR
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1299986-SP0402U-ULC-01ETG
Ultra Librarian 3D Model Ultra Librarian SP0402U-ULC-01ETG CAD Model

Description

The SPA® Zener diode is a circuit protection component designed for general-purpose applications.

  • Channel Type: Unidirectional
  • Voltage - Reverse Standoff: 5V
  • Voltage - Breakdown: 9V (typical)
  • Voltage - Clamping: 9.2V (Max) @ Ipp
  • Power - Peak Pulse: not specified
  • Capacitance @ Frequency: 0.2pF @ 1MHz
  • Current - Peak Pulse: 2A (8/20µs)
  • Mounting Type: SMD (SMT)
  • Package: 0402 (1006 Metric)
  • Operating Temperature Range: -30°C to 85°C (TA)
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Manufacturer: Littelfuse Inc.
  • Also known as: 18-SP0402U-ULC-01ETGCT, F9747TR, 18-SP0402U-ULC-01ETGTR, and F9747TR
