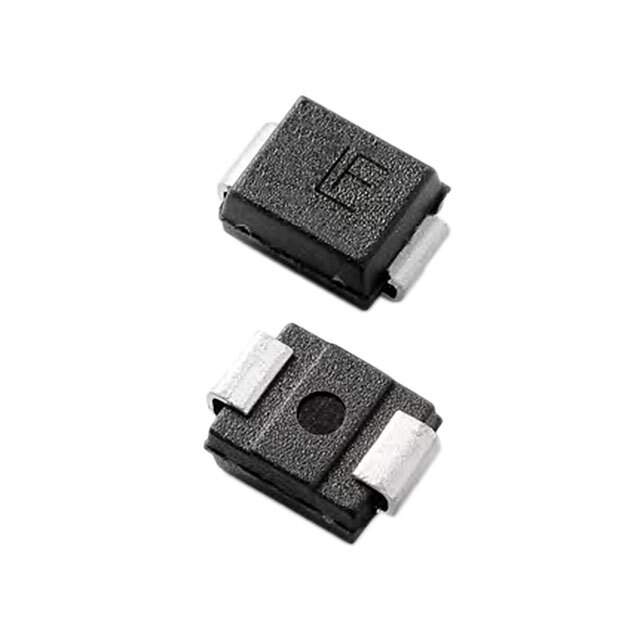

SMBJ26A-HR Real Image
Same model may have multiple batches, images only for reference.

SMBJ26A-HR

Part No SMBJ26A-HR
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SMBJ26A-HR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SMBJ-HR
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 26V
Voltage - Breakdown (Min) 28.9V
Voltage - Clamping (Max) @ Ipp 42.1V
Current - Peak Pulse (10/1000µs) 14.3A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Other Names -SMBJ26A-HR
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300588-SMBJ26A-HR
Ultra Librarian 3D Model Ultra Librarian SMBJ26A-HR CAD Model

Description

The SMBJ-HR series Zener diode is a circuit protection device that is suitable for general purpose applications.

  • Package: Tape and reel
  • Standard Package Quantity: 3,000
  • Channel Type: Unidirectional
  • Reverse Standoff Voltage: 26V
  • Breakdown Voltage: 28.9V
  • Clamping Voltage: 42.1V @ peak pulse current
  • Power Peak Pulse: 600W
  • Peak Pulse Current: 14.3A @ 10/1000µs
  • Mounting: Surface mount technology (SMT)
  • Temperature Range: -65°C to 150°C (TJ)
  • Manufacturer: Littelfuse Inc.
