Same model may have multiple batches, images only for reference.

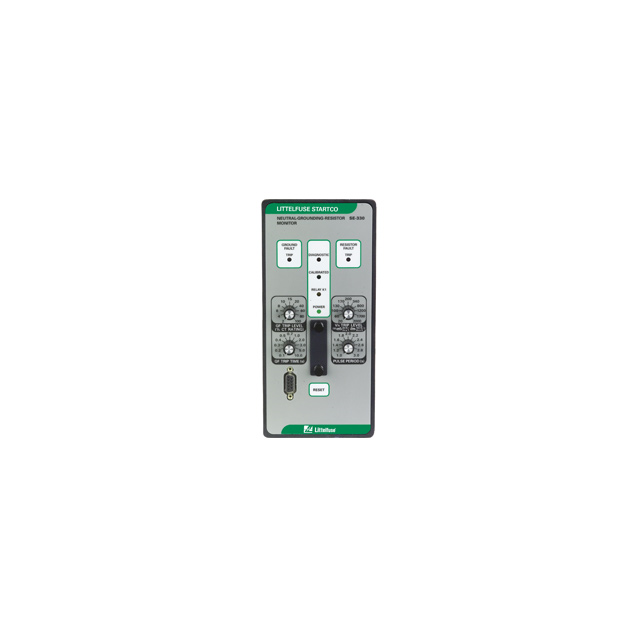

SE-330HV-20-01 Real Image
Same model may have multiple batches, images only for reference.

SE-330HV-20-01

Part No SE-330HV-20-01
Manufacturer Littelfuse Inc.
Catalog Protection Relays & Systems
Description NGR MONITOR HV LVPS NC K4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Protection Relays & Systems
Mfr Littelfuse Inc.
Series SE-330HV
Package Bulk
Function Ground Fault
Voltage - Supply 48VDC
Trip Range 20 ~ 10000VAC
Delay Time 0.1 ~ 10s
Mounting Type Panel Mount
Termination Style Screw Terminal
Features Harmonic Filtering, Manual Reset
Temperature Range - Operating -40°C ~ 60°C
Other Names -1024-SE-330HV-20-01
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1272390-SE-330HV-20-01
Ultra Librarian 3D Model Ultra Librarian SE-330HV-20-01 CAD Model

Description

This electronic component is a protection relay and system with a SE-330HV series.

  • Function: Ground fault
  • Trip Range: 20 ~ 10000VAC
  • Delay Time: 0.1 ~ 10s
  • Voltage Supply: 48VDC
  • Mounting Type: Panel mount
  • Termination Style: Screw terminal
  • Features: Harmonic filtering and manual reset
  • Manufacturer: Littelfuse Inc.
  • Win Source Part Number: 1272390-SE-330HV-20-01
