Same model may have multiple batches, images only for reference.

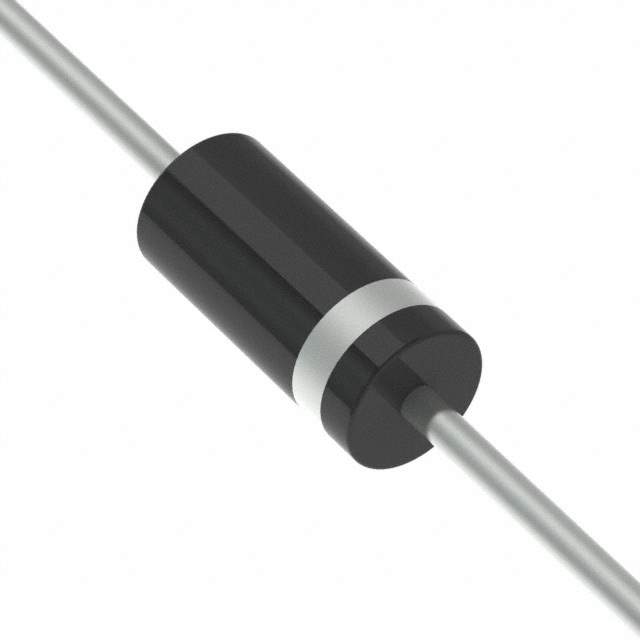

SA26A-B Real Image
Same model may have multiple batches, images only for reference.

SA26A-B

Part No SA26A-B
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SA26A-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SA
Package Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 26V
Voltage - Breakdown (Min) 28.9V
Voltage - Clamping (Max) @ Ipp 42.1V
Current - Peak Pulse (10/1000µs) 12.1A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Other Names -SA26A-B
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300785-SA26A-B
Ultra Librarian 3D Model Ultra Librarian SA26A-B CAD Model

Description

The SA26A-B is a Zener type diode used for circuit protection.

  • Channel Type: Unidirectional
  • Voltage Breakdown: 28.9V
  • Voltage Clamping @ Ipp: 42.1V
  • Power Peak Pulse: 500W
  • Peak Current: 12.1A
  • Package / Case: DO-204AC (DO-15) axial
  • Standard Package: 1,000 units
  • Manufacturer: Littelfuse Inc.
  • ECCN: EAR99 compliant
  • MSL Level: 1 (unlimited)
