Same model may have multiple batches, images only for reference.

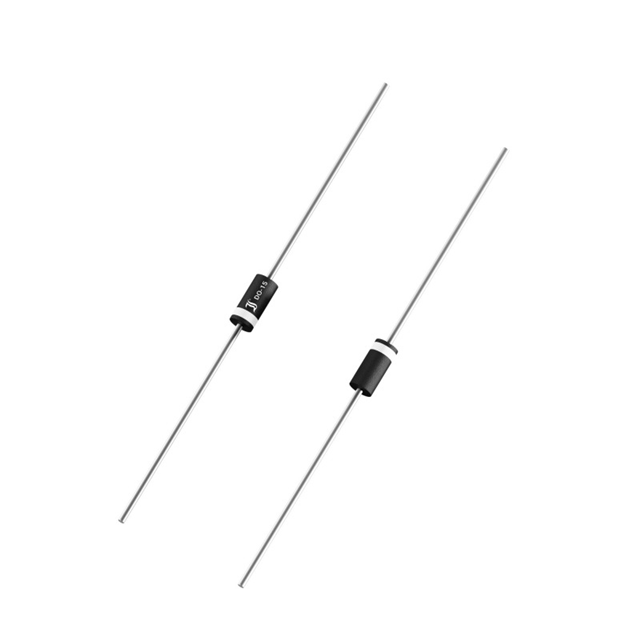

P6KE33C Real Image
Same model may have multiple batches, images only for reference.

P6KE33C

Part No P6KE33C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 28.2VWM 47.99V DO204AC / 47.99V Clamp Ipp Tvs Diode Through Hole DO-204AC (DO-15)
Datasheet
P6KE33C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 28.2V
Voltage - Breakdown (Min) 29.75V
Voltage - Clamping (Max) @ Ipp 47.99V
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Through Hole
Case / Package DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 18-P6KE33CTR,-P6KE33C,P6KE33C-ND,P6KE33CT
Standard Package 4,000
Win Source Part Number 1334955-P6KE33C
Ultra Librarian 3D Model Ultra Librarian P6KE33C CAD Model

Description

The P6KE33C TVS diode is a zener type diode from Littelfuse Inc. with a voltage rating of 28.2V reverse standoff (typ) and a breakdown voltage of 29.75V (min).

  • Voltage - Reverse Standoff (typ): 28.2V
  • Breakdown Voltage (min): 29.75V
  • Voltage Clamping (max) @ Ipp: 47.99V
  • Peak Pulse Power: 600W
  • Mounting Type: Through-hole
  • Channel: Bidirectional
  • Standard Package: 4,000
  • Case/Package: DO-204AC, DO-15, Axial
  • Temperature Range: -55°C to 175°C (TJ)
  • Status: Obsolete product
