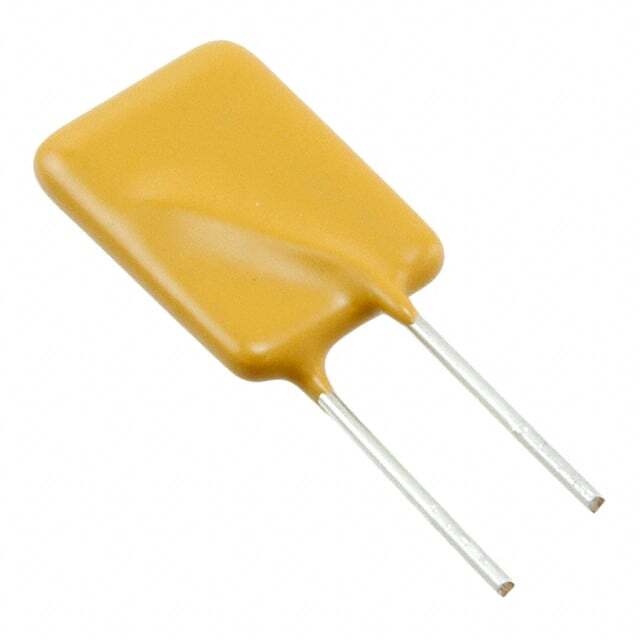

Same model may have multiple batches, images only for reference.

LVR075S-240

Name: LVR075S-240
Brand: Littelfuse Inc.
SKU: 1301595
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LVR075S-240
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Datasheet	LVR075S-240 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, LVR
Package	Bulk
Type	Polymeric
Voltage - Max	240V (265V Int)
Current - Max	7.5 A
Current - Hold (Ih) (Max)	750 mA
Current - Trip (It)	1.5 A
Time to Trip	18 s
Resistance - Initial (Ri) (Min)	316 mOhms
Resistance - Post Trip (R1) (Max)	839 mOhms
Temperature Range - Operating	-20°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.450" L x 0.189" W (11.43mm x 4.80mm)
Height - Seated (Max)	0.921" (23.40mm)
Lead Spacing	0.200" (5.08mm)
Approval Agency	CQC, CSA, TUV, UL
Other Names	RF3174-000,-1024-LVR075S-240
Standard Package	500
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1301595-LVR075S-240
Ultra Librarian 3D Model	Ultra Librarian LVR075S-240 CAD Model

Alternative Products

Description

The LVR075S-240 is a PTC resettable fuse that belongs to the PolySwitch LVR series.

Type: Polymeric
Maximum Voltage: 240V
Current Rating: 7.5A
Hold Current: 750mA
Designed to: Provide protection against overcurrents and short circuits in electronic devices
Features: Highly reliable and efficient, can withstand high temperatures
Ideal Choice for: Users who require high-quality PTC resettable fuses that can perform well under challenging conditions
