Same model may have multiple batches, images only for reference.

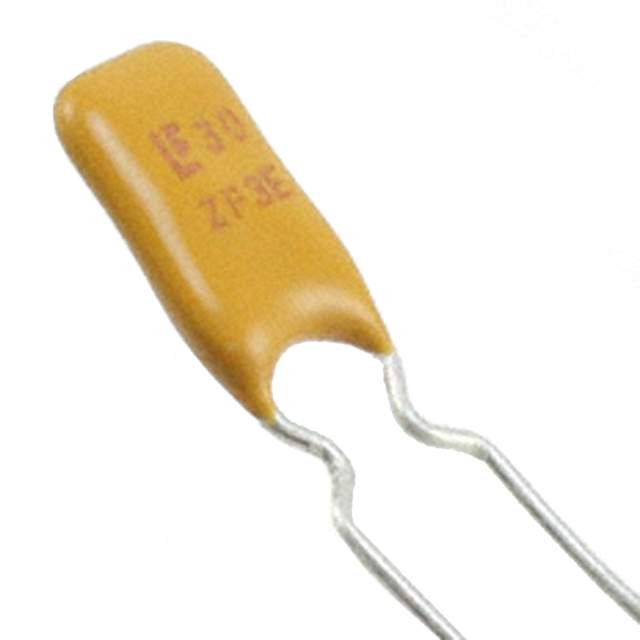

30R090UU Real Image
Same model may have multiple batches, images only for reference.

30R090UU

Part No 30R090UU
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 900MA RADIAL / Polymeric PTC Resettable Fuse 30V 900 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 30V
Current - Max 40 A
Current - Hold (Ih) (Max) 900 mA
Current - Trip (It) 1.8 A
Time to Trip 5.9 s
Resistance - Initial (Ri) (Min) 70 mOhms
Resistance - Post Trip (R1) (Max) 220 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Through Hole
Case / Package Radial, Disc
Size / Dimension 0.291" L x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Max) 0.480" (12.20mm)
Lead Spacing 0.201" (5.10mm)
Approval Agency cURus, TUV
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number -1024-30R090UU,30R090,F2020,030R0090,F1917,F2020-ND,030R0090U
Standard Package 500
Win Source Part Number 1334738-30R090UU
Ultra Librarian 3D Model Ultra Librarian 30R090UU CAD Model

Description

This is a PTC resettable fuse manufactured by Littelfuse Inc.

  • Win Source Part Number: 1334738-30R090UU
  • Type: Polymeric
  • Voltage Rating: 30V
  • Current Rating: 40A
  • Time to Trip: 5.9s
  • Resistance - Initial (Ri) (Min): 70 mOhms
  • Compliance: RoHS3
  • ECCN: EAR99
  • Used in: Circuit Protection for PTC Resettable Fuses
