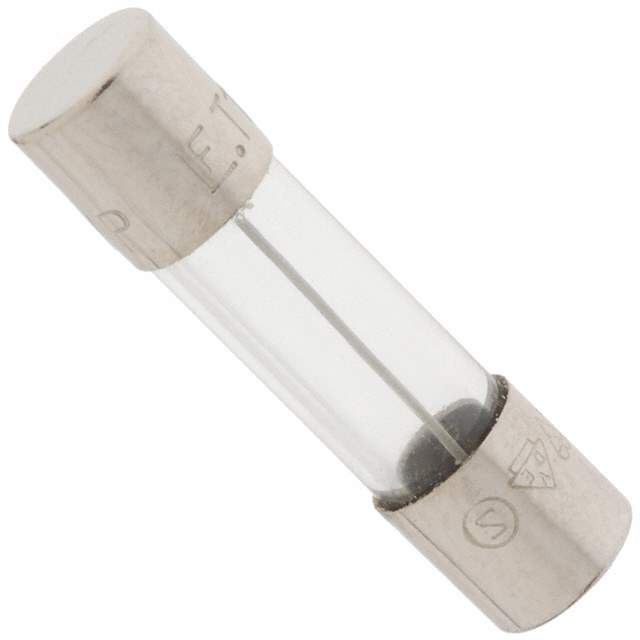

0217.630MXP Real Image
Same model may have multiple batches, images only for reference.

0217.630MXP

Part No 0217.630MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 630MA 250VAC 5X20MM / 630 mA 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 217
Package Bulk
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 630 mA
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.41
Approval Agency CCC, CE, CSA, K-MARK, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.19 Ohms
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
California Prop 65 Warning Information
Win Source Part Number 1339192-0217.630MXP
Ultra Librarian 3D Model Ultra Librarian 0217.630MXP CAD Model

Description

The 0217.630MXP is a glass cartridge fuse from Littelfuse Inc.

  • Fuse Type: Fast-Blow
  • Voltage Rating: 250 V
  • Breaking Capacity: 35A @ Rated Voltage
  • Melting I2t: 0.41
  • DC Cold Resistance: 0.19 ohms
  • Current Rating: 630 mA
  • Packaging: Bulk
  • Mounting Type: Holder Required
  • Size/Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Series: 217
  • Package/Case: 5mm x 20mm
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • Approvals: CCC, CE, CSA, K-MARK, SEMKO, UL, VDE
  • California Prop 65: Compliant with warning information
