Same model may have multiple batches, images only for reference.

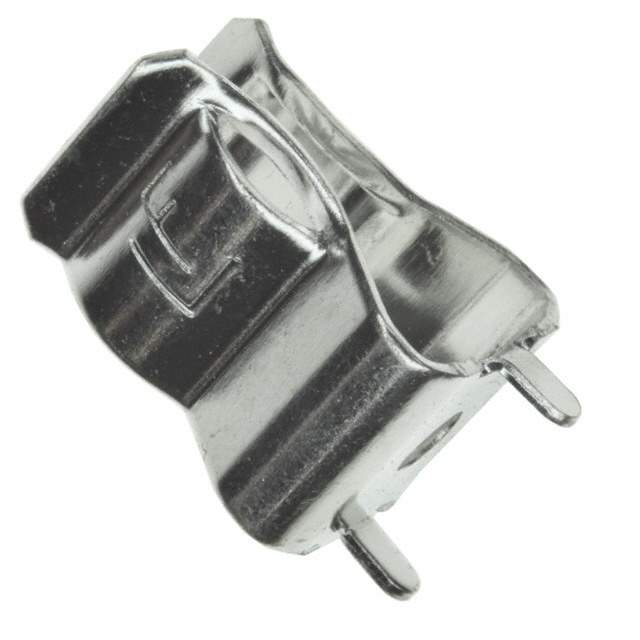

01050003H Real Image
Same model may have multiple batches, images only for reference.

01050003H

Part No 01050003H
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP CARTRIDGE 600V 15A PCB / Fuse Clip 15 A 600V 1 Circuit Cartridge Through Hole
Datasheet
01050003H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 105
Package Bulk
Mounting Type Through Hole
Fuse Size 0.394" Dia (10mm)
Current Rating (Amps) 15 A
For Use With/Related Products 13/32" Dia Fuses
Fuse Type Cartridge
Fuseholder Type Clip
Number of Circuits 1
Voltage 600V
Orientation Horizontal
Termination Style PC Pin
Contact Material Spring Brass
Contact Finish Tin
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
California Prop 65 Warning Information
Win Source Part Number 1338688-01050003H
Ultra Librarian 3D Model Ultra Librarian 01050003H CAD Model

Description

The 01050003H is a fuseholder clip from Littelfuse Inc.

  • Series: 105
  • Termination Style: PC Pin
  • Contact Finish: Tin
  • Package: Bulk
  • Contact Material: Spring Brass
  • Fuse Type: Cartridge
  • Fuseholder Type: Clip
  • Fuse Size: 0.394" Dia (10mm)
  • Number of Circuits: 1
  • Voltage: 600V
  • Orientation: Horizontal
  • Mounting: Through-Hole
  • Current Rating (Amps): 15A
  • REACH: REACH Unaffected
  • HTSUS: 8538.90.8180
  • California Prop 65: Warning Information
