Same model may have multiple batches, images only for reference.

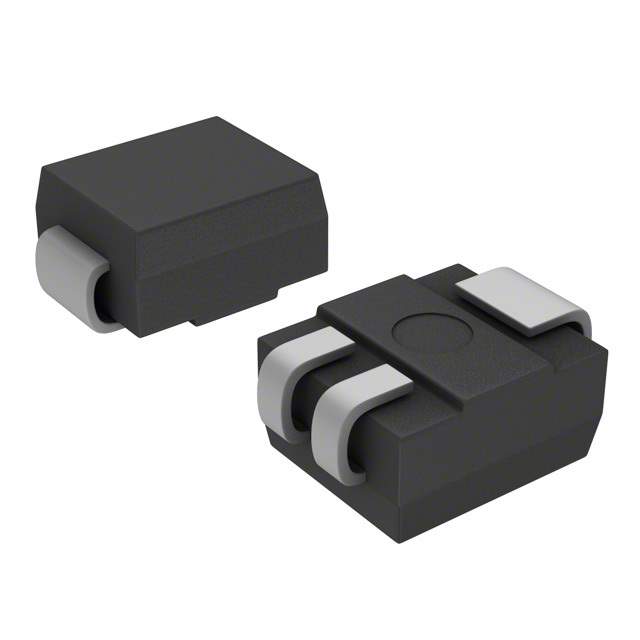

L4X3RP Real Image
Same model may have multiple batches, images only for reference.

L4X3RP

Part No L4X3RP
Manufacturer Littelfuse Inc.
Catalog Triacs
Description TRIAC SENS GATE 400V 0.8A DO214
Datasheet
L4X3RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Triac Type Logic - Sensitive Gate
Voltage - Off State 400V
Current - On State (It (RMS)) (Max) 800mA
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 8.3A, 10A
Current - Gate Trigger (Igt) (Max) 3mA
Current - Hold (Ih) (Max) 5mA
Configuration Single
Temperature Range - Operating -40°C to 110°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214 3L
Win Source Part Number 002299-L4X3RP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian L4X3RP CAD Model

Description

The Littelfuse Inc. L4X3RP is a single configuration SMD (SMT) triac type logic-sensitive gate diode with a voltage of 400V and current of 800mA.

  • Product Type: logic-sensitive gate diode
  • Configuration: single
  • Mounting Type: SMD (SMT)
  • Voltage: 400V
  • Current: 800mA
  • Popularity: medium popularity product
  • Supply and Demand Status: balanced supply and demand status
  • Application: ideal for use in various electronic devices that require discrete semiconductor products
  • Manufacturer: Littelfuse Inc.
  • Reliability: It is a reliable option for those who need a high-performance diode that can withstand high voltage and current.
