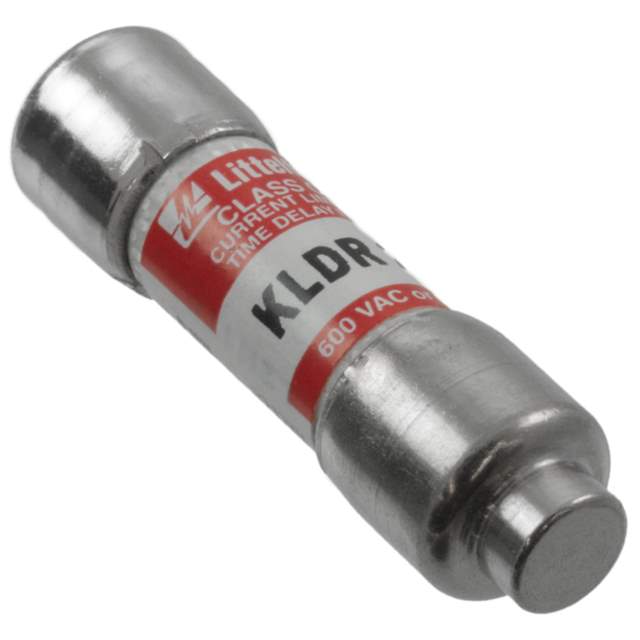

KLDR.800T Real Image1 KLDR.800T Real Image2
Same model may have multiple batches, images only for reference.
KLDR.800T Real Image1 KLDR.800T Real Image2
KLDR.800T Real Image1 KLDR.800T Real Image2
Same model may have multiple batches, images only for reference.

KLDR.800T

Part No KLDR.800T
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 800MA 600VAC/300VDC / 800mA 600 V AC 300 V DC Fuse Cartridge Requires Holder
Datasheet
KLDR.800T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLDR
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 800mA
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Transformer Protection
Features -
Class CC
Approval Agency CE, CSA, UL
Temperature Range - Operating -
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 10 pcs
Win Source Part Number 1382420-KLDR.800T
Ultra Librarian 3D Model Ultra Librarian KLDR.800T CAD Model

Description

The KLDR.800T is a cartridge fuse designed for circuit protection, specifically for transformer applications. It is part of the POWR-GARD KLDR series and has a voltage rating of 600V AC and 300V DC.

  • Response Time: Slow Blow
  • Voltage Rating: 600V AC, 300V DC
  • Breaking Capacity: 200kA AC, 20kA DC @ rated voltage
  • Current Rating: 800mA
  • Size: 0.406" diameter, 1.500" length
  • Approval: CE, CSA, UL
  • Status: Obsolete
  • Manufacturer: Littelfuse Inc.
