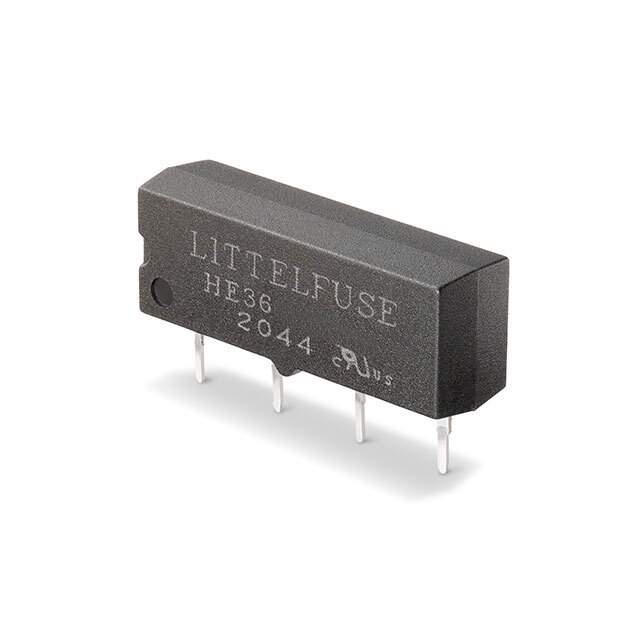

HE3621A1210 Real Image
Same model may have multiple batches, images only for reference.

HE3621A1210

Part No HE3621A1210
Manufacturer Littelfuse Inc.
Catalog Signal Relays, Up to 2 Amps
Description RELAY REED SPST 500MA 12V /
Datasheet
HE3621A1210 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Reed Relays
Mfr Littelfuse Inc.
Series HE3600
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VDC - Max
Coil Current 12 mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Must Operate Voltage 8 VDC
Must Release Voltage 1 VDC
Operate Time 1 ms
Release Time 1 ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 1 kOhms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Other Names -1024-HE3621A1210,HE209-NDR,HE209
Standard Package 25
Win Source Part Number 1226732-HE3621A1210
Ultra Librarian 3D Model Ultra Librarian HE3621A1210 CAD Model

Description

The HE3621A1210 from Littelfuse Inc. is a reed relay designed for use in various applications.

  • Relay Type: SPST-NO (1 Form A)
  • Package: Tube
  • Termination Style: PC pin
  • Features: Diode
  • Contact Rating: Up to 500 mA
  • Coil Voltage: 12VDC
  • Coil Resistance: 1 kOhms
  • Coil Current: 12 mA
  • Operating Temperature: -40°C to 85°C
  • Must Operate Voltage: 8 VDC
  • Must Release Voltage: 1 VDC
  • Switching Voltage: 200VDC max
  • Release Time: 1 ms
  • Operate Time: 1 ms
