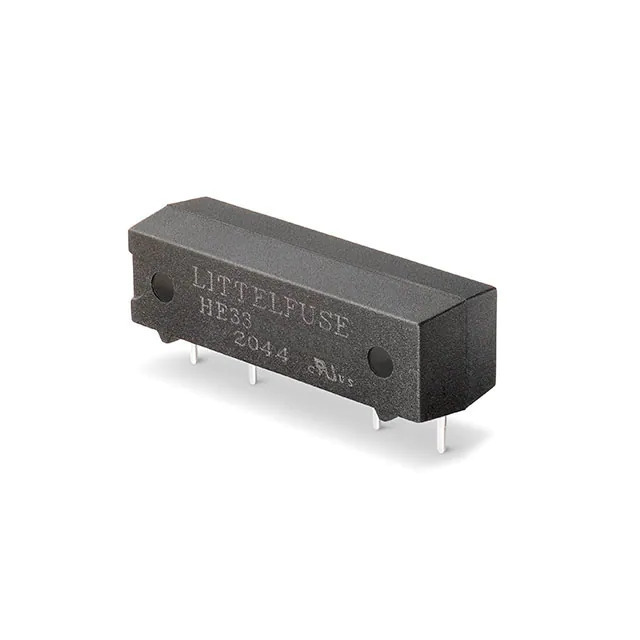

HE3321C0500 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

HE3321C0500

Part No HE3321C0500
Manufacturer Littelfuse Inc.
Catalog Reed Relays
Description RELAY REED SPDT 250MA 5V
Datasheet
HE3321C0500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Littelfuse Inc.
Series HE3300
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 250 mA
Switching Voltage 175VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating -
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 3 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material -
Coil Resistance 125 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1373479-HE3321C0500
Ultra Librarian 3D Model Ultra Librarian HE3321C0500 CAD Model

Description

The HE3321C0500 is a reed relay from Littelfuse Inc.

  • Series: HE3300
  • Package: Bulk
  • Coil Voltage: 5VDC
  • Contact Rating: 250 mA
  • Switching Voltage (maximum): 175VDC
  • Coil Current: 40 mA
  • Coil Type: Non-Latching
  • Must Operate Voltage: 3.75 VDC
  • Must Release Voltage: 0.5 VDC
  • Temperature Range: -40°C to 85°C
  • Coil Resistance: 125 Ohms
