Same model may have multiple batches, images only for reference.

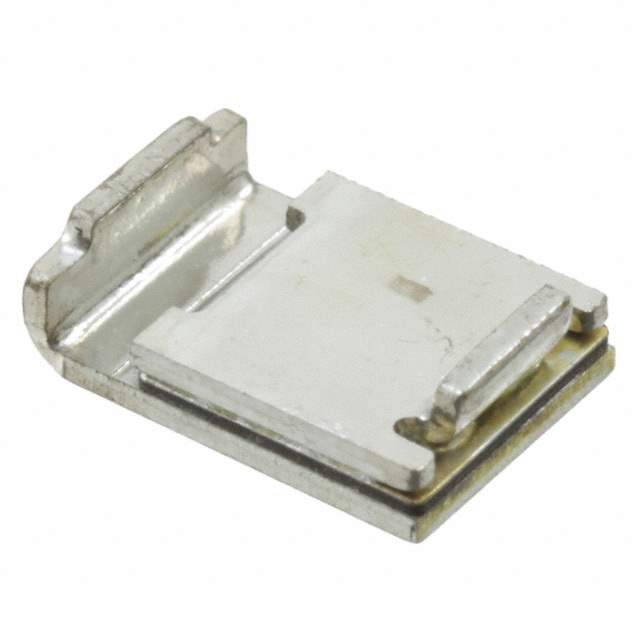

AHS160-2 Real Image
Same model may have multiple batches, images only for reference.

AHS160-2

Part No AHS160-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RSET 1.60A / PTC Resettable Fuse 1.6A(hold) 3.2A(trip) 16VDC 2.2W 15s 0.05Ohm SMD Solder Pad 3425 T/R Automotive
Datasheet
AHS160-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, AHS
Packaging Reel package
Type Polymeric
Voltage - Max 16V
Current - Max 70A
Current - Hold (Ih) (Maximum) 1.6A
Current - Trip (It) 3.2A
Time to Trip 15s
Resistance - Initial (Ri) (Minimum) 50 mOhm
Resistance - Post Trip (R1) (Maximum) 150 mOhm
Operating Temperature Range -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD
Package 2-SMD
Dimension 0.343" L x 0.250" W (8.70mm x 6.36mm)
Thickness (Maximum) 0.118" (3.00mm)
Win Source Part Number 768369-AHS160-2
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHS160-2 CAD Model

Description

The Littelfuse Inc. PolySwitch AHS series polymeric type circuit protection component comes in a 2-SMD package.

  • Operating Temperature: -40°C to 125°C
  • Voltage - Max: 16V
  • Current - Max: 70A
  • Current - Trip (It): 3.2A
  • Time to Trip: 15s
  • AEC-Q200 Rated: Yes
  • Supply and Demand Status: Limited
  • Dimension: 0.343" L x 0.250" W (8.70mm x 6.36mm)
  • Thickness (Maximum): 0.118" (3.00mm)
  • Resistance - Initial (Ri) (minimum): 50 mOhm
  • Resistance - Post Trip (R1) (maximum): 150 mOhm
