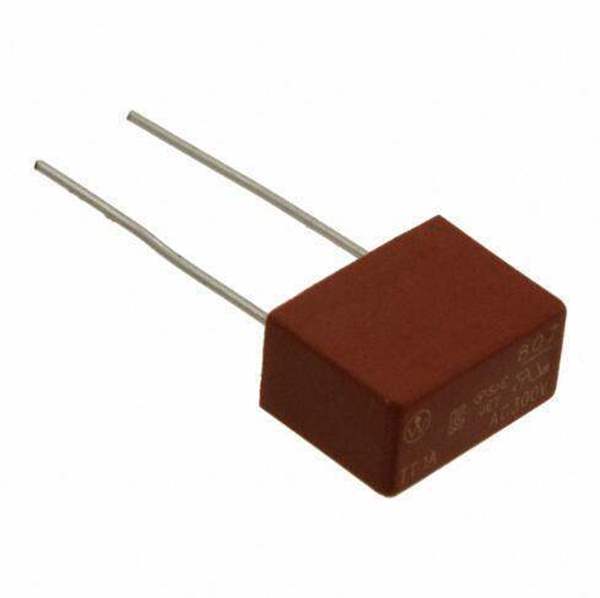

80715000000Littelfuse Inc.
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Littelfuse Inc.
Category Circuit Protection Fuses
Packaging  Cut Tape (CT) Tape & Box (TB)
Part Status Active
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Voltage Rating - AC 300 V
Response Time Slow Blow
Approval Agency cULus, KC, PSE/JET
Operating Temperature -40°C ~ 125°C
Size / Dimension 0.488" L x 0.252" W x 0.362" H (12.40mm x 6.40mm x 9.20mm)
Win Source Part Number WS1304280-80715000000
Ultra Librarian 3D Model Ultra Librarian 80715000000 CAD Model

Description

The 807 Series is a time-lag type subminiature fuse designed for overcurrent protection.
