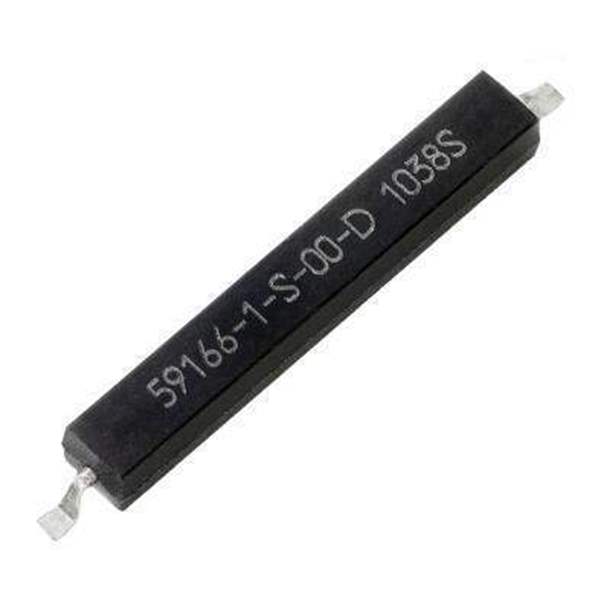

59166-1-S-00-CLittelfuse Inc.
Same model may have multiple batches, images only for reference.

59166-1-S-00-C

Part No 59166-1-S-00-C
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V
Datasheet
59166-1-S-00-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Littelfuse Inc.
Category Switches Magnetic, Reed Switches
Product Status Active
Type Molded Body Reed
Operate Range 10 ~ 15AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Mounting Type Surface Mount
Termination Style Gull Wing
Win Source Part Number WS1209674-59166-1-S-00-C
Ultra Librarian 3D Model Ultra Librarian 59166-1-S-00-C CAD Model

Description

Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount
