59165-1-S-00-D Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59165-1-S-00-D

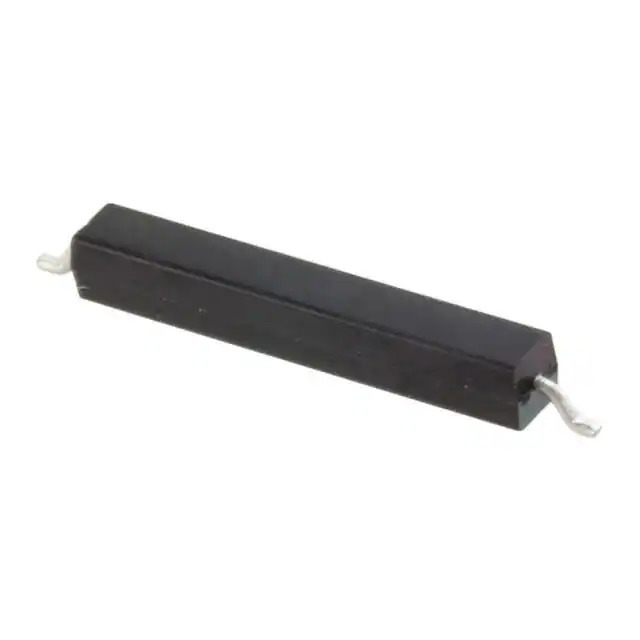

Part No 59165-1-S-00-D
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V / Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Magnetic, Reed Switches
Mfr Littelfuse Inc.
Series 59165
Package Tape & Reel
Product Status Active
Type Molded Body Reed
Circuit SPST-NO
Operate Range 10 ~ 15AT
Release Range -
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Operate Time 1 ms
Release Time 1 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Length - Overall 0.795" (20.19mm)
Size - Body 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board 0.099" (2.52mm)
Temperature Range - Operating -40°C ~ 105°C
Capacitance 0.3 pF
Current - Carry 800mA (DC)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1354834-59165-1-S-00-D
Ultra Librarian 3D Model Ultra Librarian 59165-1-S-00-D CAD Model

Description

The Littelfuse Inc. 59165 is a molded body reed switch designed for magnetic switches.

  • Temperature Range: -40°C to 105°C
  • Length: 0.795"
  • Height Above Board: 0.099"
  • Circuit Configuration: SPST-NO
  • Termination Style: Gull Wing
  • Power Rating: 10W
  • Operate Range: 10-15AT
  • Switching Current (AC): 350mA
  • Switching Current (DC): 500mA
  • Voltage Rating (AC): 140V
  • Voltage Rating (DC): 200V
  • Product Status: Active
