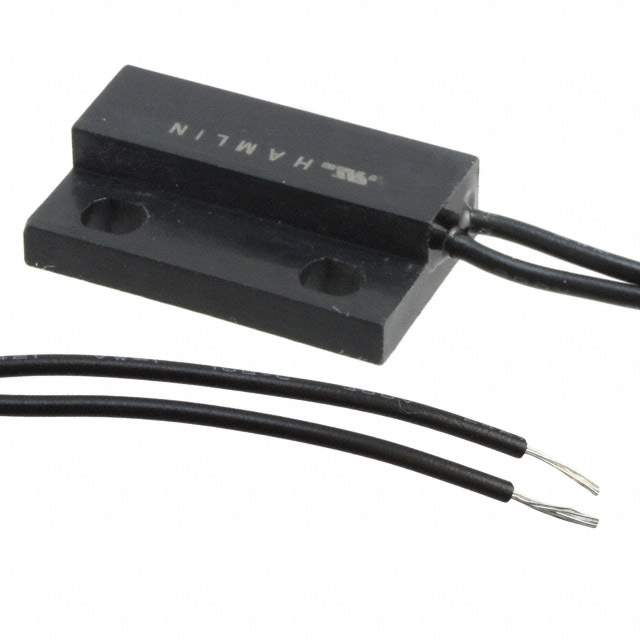

59140-1-S-02-F Real Image
Same model may have multiple batches, images only for reference.

59140-1-S-02-F

Part No 59140-1-S-02-F
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 3000001047-59140-1-S-02-F
Manufacturer Littelfuse Inc.
Category Sensors, Transducers --Magnetic Sensors -Position, Proximity, Speed (Modules)
Series 59140
Type Reed Switch
Package Box
Product Status Active
Output Type SPST-NO
Actuator Material Magnet
Termination Style Wire Leads
Must Operate 10.40mm
Ultra Librarian 3D Model Ultra Librarian 59140-1-S-02-F CAD Model

Description

The Littelfuse Inc. 59140 series reed switch is a high-performance component suitable for various magnetic sensor applications. The SPST-NO output type and 10.40mm must operate distance make it ideal for use in position, proximity, and speed modules. The wire leads termination style ensures easy and secure connection. The actuator material is magnet, ensuring reliable and accurate operation. This reed switch is available in a box package and is an active product in the market.
