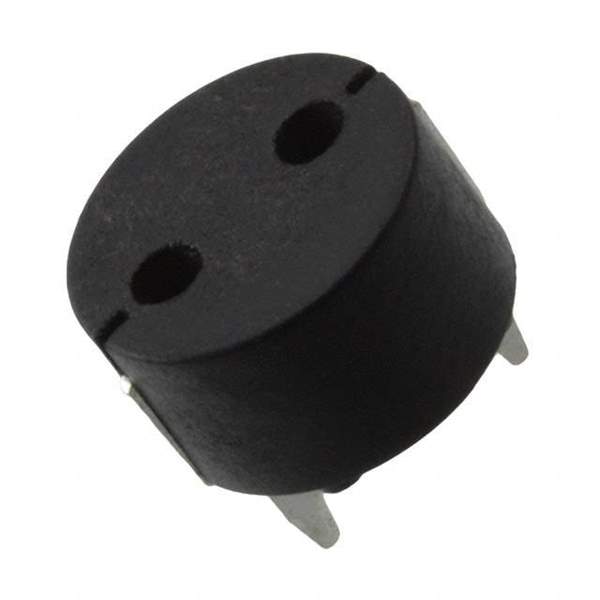

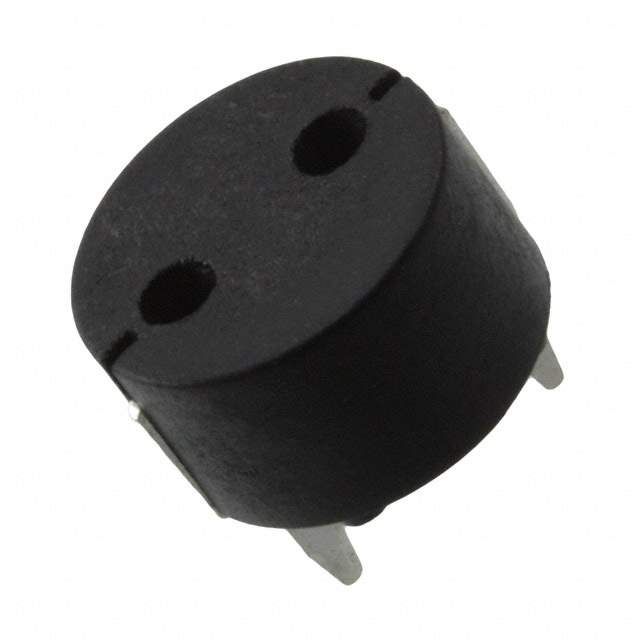

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Littelfuse Inc.
Series 559
Package Bulk
Mounting Type Through Hole
Fuse Size Radial 0.2" (5.08mm) Pitch
Current Rating (Amps) 6.3 A
For Use With/Related Products Radial Box, Can
Fuse Type Radial
Fuseholder Type Holder
Number of Circuits 1
Voltage 250V
Orientation Vertical
Termination Style PC Pin
Contact Material Copper Alloy
Contact Finish Tin
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
California Prop 65 Warning Information
Standard Package 1,000 pcs
Win Source Part Number 1380942-55900000001
Ultra Librarian 3D Model Ultra Librarian 55900000001 CAD Model

Description

The 559 Fuseholder is a reliable and durable component designed for circuit protection.

  • Part Status: Active
  • Fuse Size: Radial, 0.2" (5.08mm) Pitch
  • Fuse Type: Box, Can
  • Current Rating (Amps): 6.3A
  • Voltage Rating: 250V
  • Mounting Type: Through Hole
  • Orientation: Vertical
  • Termination Style: PC Pin
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Number of Circuits: 1
  • Operating Temperature: 0°C ~ 85°C
