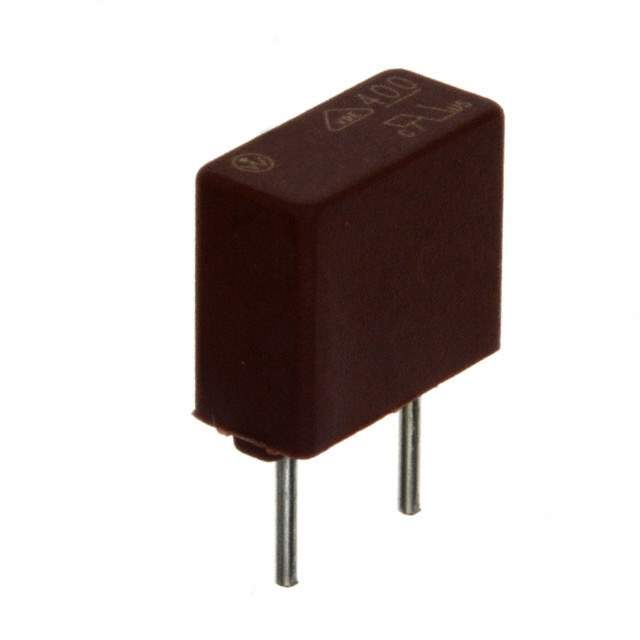

40015000000 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series TE5® 400
Package Cut Tape (CT)Tape & Box (TB)
Product Status Active
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case Radial, Box
Breaking Capacity @ Rated Voltage 130A
Melting I2t 216.5
Approval Agency CQC, cURus, KC, PSE/JET, VDE
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm)
DC Cold Resistance 0.0098 Ohms
Standard Package 1,400 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 855915-40015000000
Ultra Librarian 3D Model Ultra Librarian 40015000000 CAD Model

Description

The 855915-40015000000 is a TE5® 400 series fuse designed for circuit protection in electronic devices.

  • Series: TE5® 400
  • Type: Board Mount Fuse
  • Response Time: Slow Blow
  • Protection: Reliable Protection Against Overcurrent and Short Circuits
  • Voltage Rating: 250 V AC
  • Breaking Capacity: 130A @ Rated Voltage
  • Size: 0.335" Length, 0.157" Width, and 0.315" Height
  • Mounting: Through-Hole
  • DC Cold Resistance: 0.0098 Ohms
  • Temperature Range: -40°C to 85°C
  • Compliance: CQC, cURus, KC, PSE/JET, and VDE
  • Product Status: Active
  • Manufacturer: Littelfuse Inc.
