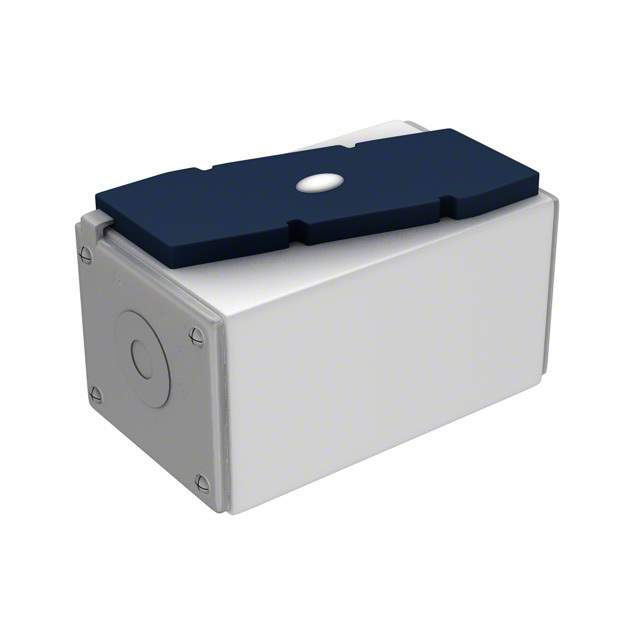

170M6650 Real Image
Same model may have multiple batches, images only for reference.

170M6650

Part No 170M6650
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE SQUARE 1.25KA 1.3KVAC RECT / 1.25kA 1.3 kV AC DC Fuse Square Holder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Eaton - Bussmann Electrical Division
Package Bulk
Mounting Type Holder
Fuse Type Square
Current Rating (Amps) 1.25kA
Voltage Rating - AC 1.3 kV
Applications Electrical, Industrial
Features Indicating
Approval Agency CSA, UR
Breaking Capacity @ Rated Voltage 100kA
Package / Case Rectangular, Blade
Dimension 3.189" L x 2.992" W x 3.622" H (81.00mm x 76.00mm x 92.00mm)
Melting I2t 810000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8535.10.0040
Standard Package 1
Win Source Part Number 1226804-170M6650
Ultra Librarian 3D Model Ultra Librarian 170M6650 CAD Model

Description

The 1226804-170M6650 is a square fuse from Eaton - Bussmann Electrical Division.

  • Voltage Rating: 1.3 kV
  • Breaking Capacity: 100kA
  • Indicating Function: Yes
  • Current Rating: 1.25kA
  • Melting I2t: 810000
  • Package: Rectangular, Blade
  • Mounting Type: Holder
  • Package Dimensions: 3.189" L x 2.992" W x 3.622" H (81.00mm x 76.00mm x 92.00mm)
