Same model may have multiple batches, images only for reference.

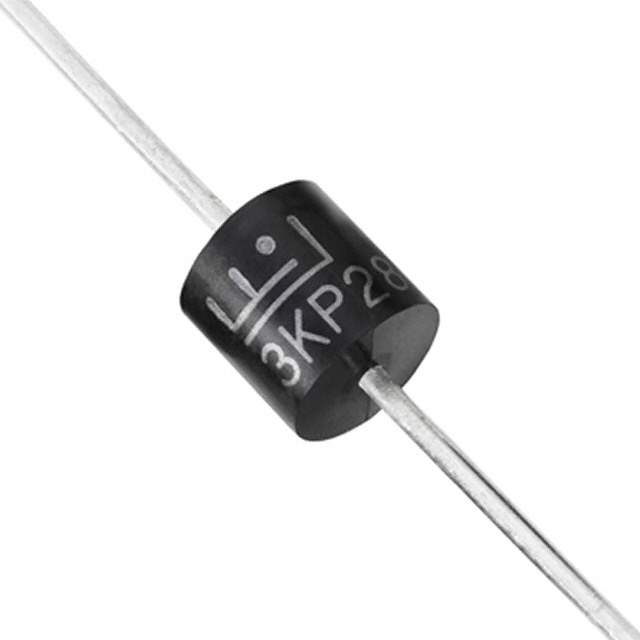

3KP58A Real Image
Same model may have multiple batches, images only for reference.

3KP58A

Part No 3KP58A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 58VWM 93.6VC P600 / 93.6V Clamp 32.1A Ipp Tvs Diode Through Hole P600
Datasheet
3KP58A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series 3KP
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 58V
Voltage - Breakdown (Min) 64.4V
Voltage - Clamping (Max) @ Ipp 93.6V
Current - Peak Pulse (10/1000µs) 32.1A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names -3KP58A
Standard Package 800
Win Source Part Number 1190169-3KP58A
Ultra Librarian 3D Model Ultra Librarian 3KP58A CAD Model

Description

The 1190169-3KP58A is a Zener type TVS diode that is suitable for general-purpose applications.

  • Series: 3KP
  • Voltage Rating (Reverse Standoff): 58V
  • Voltage Rating (Breakdown): 64.4V
  • Voltage Clamping @ Ipp (Max): 93.6V
  • Peak Pulse Power: 3000W (3kW)
  • Channel: Unidirectional
  • Peak Pulse Current: 32.1A (10/1000µs)
  • Package Type: P600, axial
  • Supplier Device Package: P600
  • Mounting Type: Through-Hole
  • Standard Package: 800
  • Operating Temperature: -55°C to 175°C (TJ)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
  • Manufacturer: Littelfuse Inc.
  • Status: Obsolete
