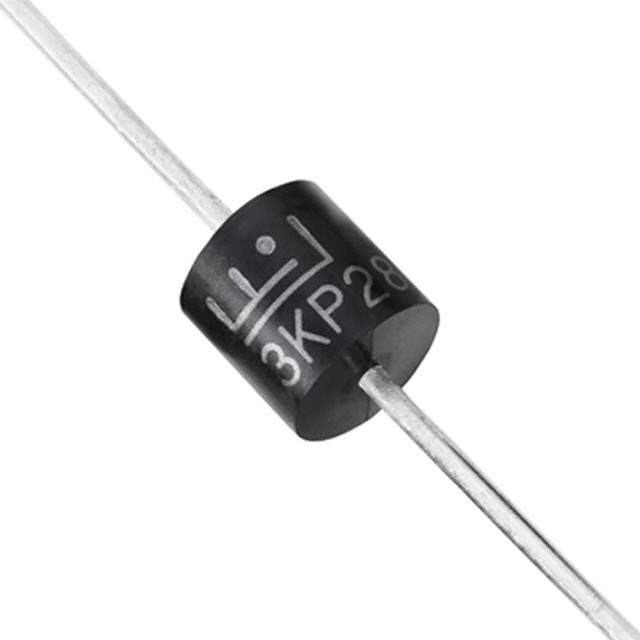

3KP100A Real Image
Same model may have multiple batches, images only for reference.

3KP100A

Part No 3KP100A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 100VWM 162VC P600 / 162V Clamp 18.5A Ipp Tvs Diode Through Hole P600
Datasheet
3KP100A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series 3KP
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 100V
Voltage - Breakdown (Min) 111V
Voltage - Clamping (Max) @ Ipp 162V
Current - Peak Pulse (10/1000µs) 18.5A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3KP100A-ND,3KP100ATR,-3KP100A,3KP100ACT
Standard Package 800
Win Source Part Number 1177738-3KP100A
Ultra Librarian 3D Model Ultra Librarian 3KP100A CAD Model

Description

The 3KP series Zener type TVS diodes are designed to protect electronic equipment from voltage transients induced by lightning and other transient voltage events.

  • Type: Unidirectional TVS diode
  • Reverse Standoff Voltage: 100V
  • Breakdown Voltage: 111V
  • Clamping Voltage: 162V @ 18.5A
  • Package: P600 axial
  • Temperature Range: -55°C to 175°C
  • Status: Obsolete
