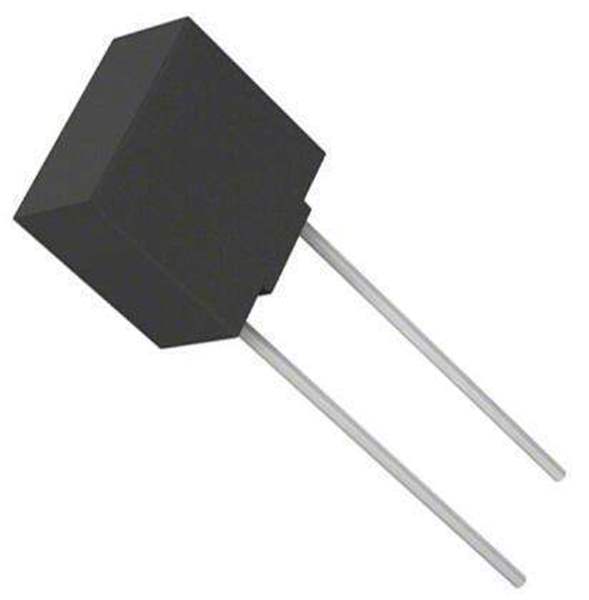

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Littelfuse Inc.
Category Circuit Protection Fuses
Package Cut Tape (CT) Tape & Box (TB)
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Voltage Rating - AC 125 V
Response Time Slow Blow
Package / Case Radial, Box
Breaking Capacity @ Rated Voltage 100A
Approval Agency cUL, PSE/JET, UL
Win Source Part Number WS1208297-39615000000
Ultra Librarian 3D Model Ultra Librarian 39615000000 CAD Model

Description

■ RoHS-compliant, Lead-free and Halogen-free ■ Reduced PCB space requirements ■ Direct solderable or plug-in versions ■ Low internal resistance<br /> ■ Shock safe casing ■ Vibration resistant ■ Available from 0.05 A to 6.3 A ■ Listed to UL/CSA/NMX 248-1 and UL/CSA/NMX 248-14<br /> ■ Conforms to DENAN’s Appendix 3 for the Japanese Market<br />
