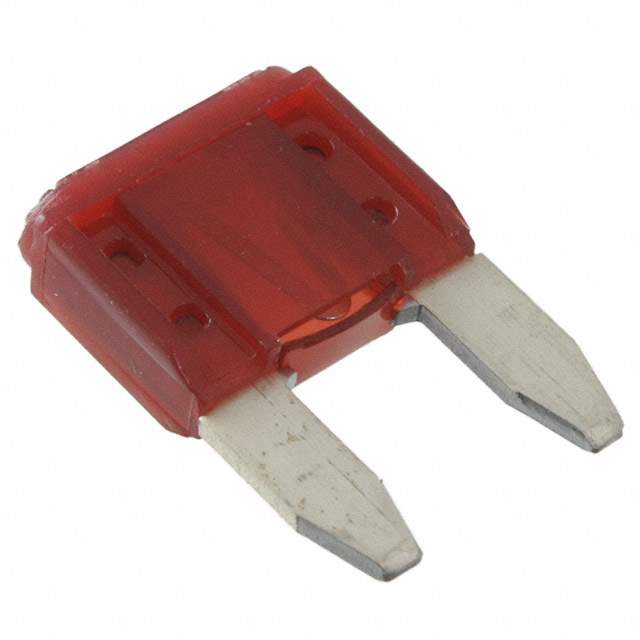

029707.5WXNV Real Image
Same model may have multiple batches, images only for reference.

029707.5WXNV

Part No 029707.5WXNV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 7.5A 32VDC BLADE MINI / MINI® BLADE FUSE RATED 32V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 7.5A
Voltage Rating - DC 32V
Response Time Fast Blow
Manufacturer Package Blade, Miniature
Mounting Style Holder
Breaking Capacity at Rated Voltage 1kA
Melting I2t 68
Approvals UL, UR
Temperature Range - Operating -40°C ~ 125°C
Color Brown
Dimension 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
DC Cold Resistance 0.01085 Ohms
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802253-029707.5WXNV
Ultra Librarian 3D Model Ultra Librarian 029707.5WXNV CAD Model

Description

The 802253-029707.5WXNV electronic component is manufactured by Littelfuse Inc.

  • Voltage Rating: 32V
  • Response Time: Fast Blow
  • Melting I2t: 68
  • Approvals: UL, UR
  • DC Cold Resistance: 0.01085 Ohms
  • Operating Temperature: -40°C ~ 125°C
  • Dimensions: 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
  • Package: Blade, Miniature
