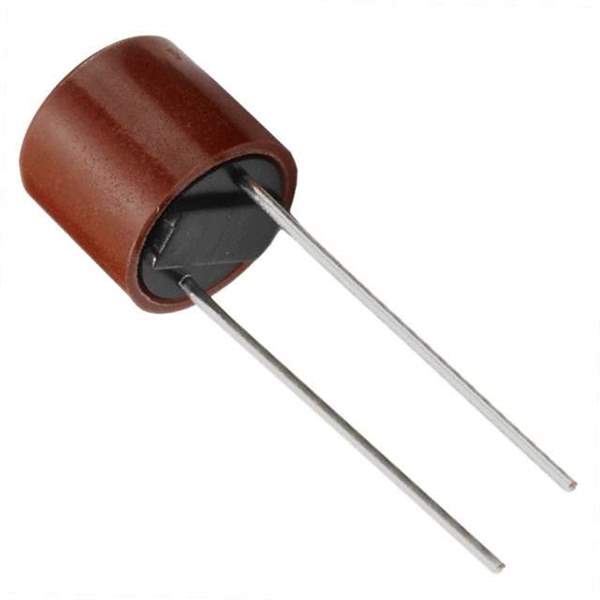

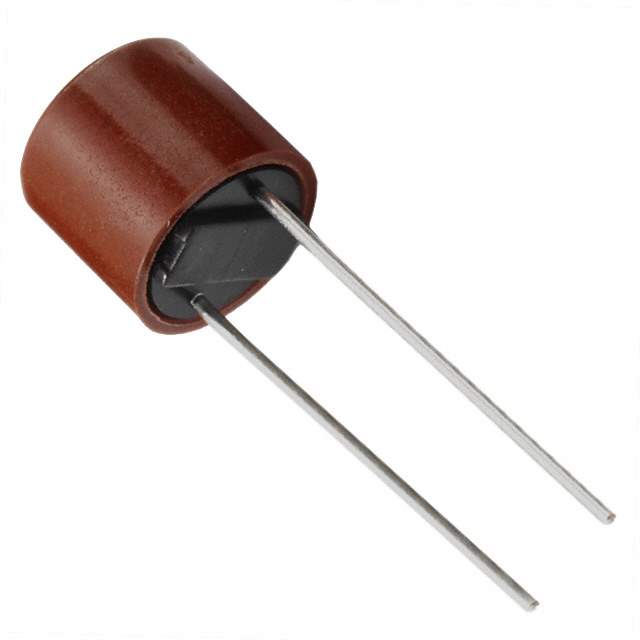

38221000000 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Cut Tape (CT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 10A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package Radial, Can, Vertical
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 100A
Melting I2t 365
Approvals cURus, PSE/JET
Temperature Range - Operating -40°C ~ 85°C
Parts Dimension 0.335" Dia x 0.315" H (8.50mm x 8.00mm)
DC Cold Resistance 0.0042 Ohms
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Win Source Part Number 759336-38221000000
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 38221000000 CAD Model

Description

The Littelfuse Inc. 759336-38221000000 is a high-quality circuit protection component.

  • Applications: Various electronic devices
  • Popularity: High
  • Supply and Demand Status: Balanced
  • Installation: Easy to install and use, with a user manual
