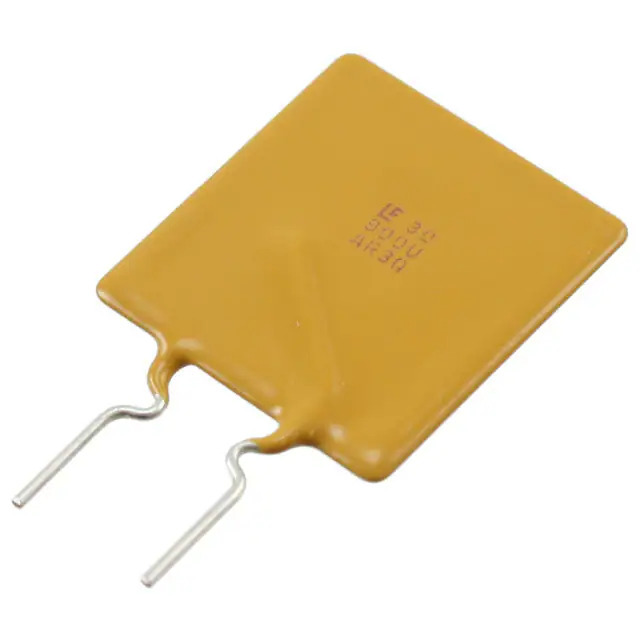

Same model may have multiple batches, images only for reference.

30R900UMR

Name: 30R900UMR
Brand: Littelfuse Inc.
SKU: 1361763
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	30R900UMR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 9A RADIAL / Polymeric PTC Resettable Fuse 30V 9 A Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 30R
Product Status	Active
Type	Polymeric
Voltage - Max	30V
Current - Hold (Ih) (Max)	9 A
Current - Trip (It)	18 A
Current - Max	40 A
Time to Trip	20 s
Resistance - Initial (Ri) (Min)	5 mOhms
Resistance - Post Trip (R1) (Max)	20 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.950" L x 0.120" W (24.10mm x 3.00mm)
Height - Seated (Max)	1.244" (31.60mm)
Thickness (Max)	-
Lead Spacing	0.402" (10.20mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361763-30R900UMR
Ultra Librarian 3D Model	Ultra Librarian 30R900UMR CAD Model

Description

The Littelfuse Inc. POLY-FUSE® 30R series is a resettable PTC fuse designed for circuit protection in various applications.

Operating Temperature: -40°C to 85°C
Maximum Current Rating: 40 A
Maximum Voltage Rating: 30V
Response Time: Slow Blow
Breaking Capacity: 1kA @ rated voltage
Mounting Type: Through-Hole
Package: Radial, Disc
HTSUS: 8533.40.8070
ECCN: EAR99
