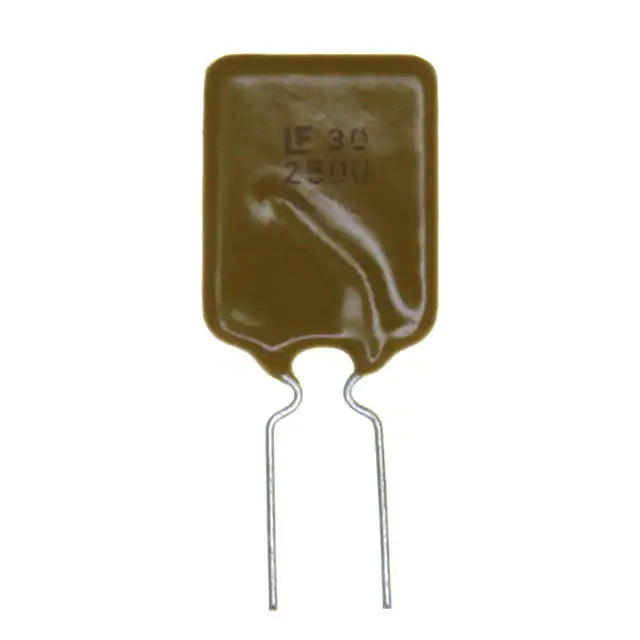

Same model may have multiple batches, images only for reference.

30R250UPR

Name: 30R250UPR
Brand: Littelfuse Inc.
SKU: 1361796
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	30R250UPR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 2.5A RADIAL / Polymeric PTC Resettable Fuse 30V 2.5 A Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 30R
Product Status	Active
Type	Polymeric
Voltage - Max	30V
Current - Hold (Ih) (Max)	2.5 A
Current - Trip (It)	5 A
Current - Max	40 A
Time to Trip	10.3 s
Resistance - Initial (Ri) (Min)	20 mOhms
Resistance - Post Trip (R1) (Max)	70 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.449" L x 0.118" W (11.40mm x 3.00mm)
Height - Seated (Max)	0.720" (18.30mm)
Thickness (Max)	-
Lead Spacing	0.118" (3.00mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361796-30R250UPR
Ultra Librarian 3D Model	Ultra Librarian 30R250UPR CAD Model

Description

The 1361796-30R250UPR is a polymeric PTC resettable fuse from Littelfuse Inc.

Series: POLY-FUSE® 30R
Package: Radial, disc
Maximum Current Rating: 40 A
Maximum Voltage Rating: 30V
Current Hold (Ih): 2.5 A
Current Trip (It): 5 A
Time to Trip: 10.3 s
Initial Resistance (Ri): 20 mOhms
Post-trip Resistance (R1): 70 mOhms
Approvals: cURus and TUV
Temperature Range: -40°C to 85°C
