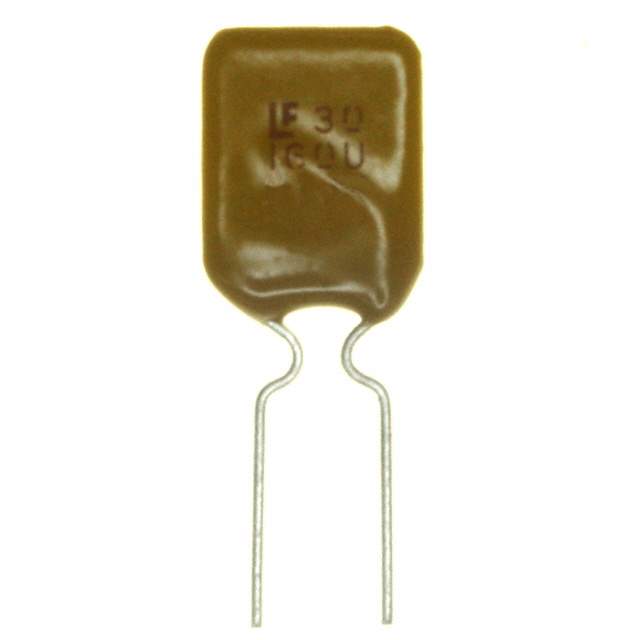

Same model may have multiple batches, images only for reference.

30R160UPR

Name: 30R160UPR
Brand: Littelfuse Inc.
SKU: 1120502
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	30R160UPR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 1.6A RADIAL / Polymeric PTC Resettable Fuse 30V 1.6 A Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 30R
Package	Cut Tape (CT),Tape & Box (TB)
Type	Polymeric
Voltage - Max	30V
Current - Max	40 A
Current - Hold (Ih) (Max)	1.6 A
Current - Trip (It)	3.2 A
Time to Trip	8 s
Resistance - Initial (Ri) (Min)	30 mOhms
Resistance - Post Trip (R1) (Max)	110 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Max)	0.598" (15.20mm)
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	030R0160WR,R30R160,F1980CT,30R160UPR-ND,F1980TB,030R0160WR-ND
Standard Package	2,000
Win Source Part Number	1120502-30R160UPR
Ultra Librarian 3D Model	Ultra Librarian 30R160UPR CAD Model

Alternative Products

Description

The 1120502-30R160UPR from Littelfuse Inc. is a Polymeric PTC Resettable Fuse designed for use in various circuit protection applications.

Voltage Rating: 30V
Maximum Current Rating: 40 A
Current Hold (Ih): 1.6 A
Current Trip (It): 3.2 A
Time to Trip: 8 s
Resistance: 30 mOhms
RoHS Compliant: Yes
Packaging: Cut tape (CT) and tape & box (TB)
Standard Package: 2,000
Approvals: cURus and TUV
ECCN: EAR99
