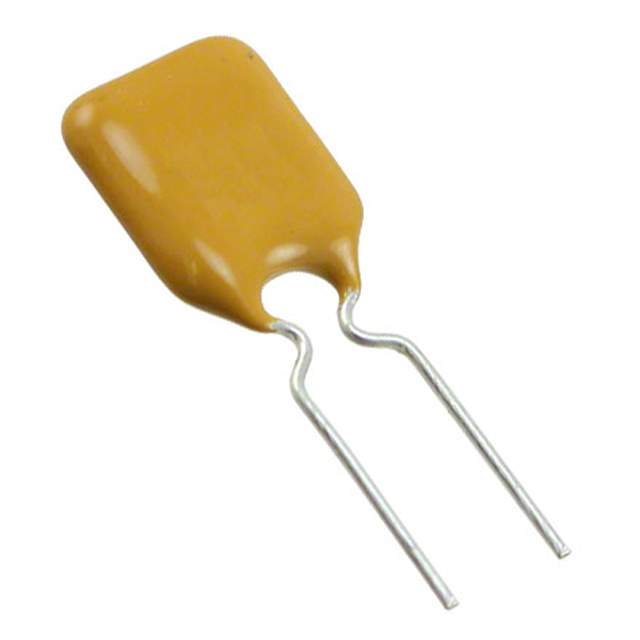

Same model may have multiple batches, images only for reference.

30R135UU

Name: 30R135UU
Brand: Littelfuse Inc.
SKU: 1037993
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	30R135UU
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 1.35A RADIAL / Polymeric PTC Resettable Fuse 30V 1.35 A Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 30R
Package	Bulk
Type	Polymeric
Voltage - Max	30V
Current - Max	40 A
Current - Hold (Ih) (Max)	1.35 A
Current - Trip (It)	2.7 A
Time to Trip	7.3 s
Resistance - Initial (Ri) (Min)	40 mOhms
Resistance - Post Trip (R1) (Max)	130 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Max)	0.532" (13.50mm)
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	030R0135,-1024-30R135UU,F1918,F2022,F2022-ND,030R0135U,30R135
Standard Package	500
Win Source Part Number	1037993-30R135UU
Ultra Librarian 3D Model	Ultra Librarian 30R135UU CAD Model

Description

The POLY-FUSE 30R is a polymeric type PTC resettable fuse from Littelfuse Inc.

Mounting: through-hole
Package/Case: radial, disc
Maximum Voltage: 30V
Current: 40A
Current Hold: 1.35A
Current Trip: 2.7A
Time to Trip: 7.3s
Initial Resistance: 40 mOhms
Post-Trip Resistance: 130 mOhms
Height Seated: 0.532" (13.50mm)
Lead Spacing: 0.201" (5.10mm)
Popularity: medium
Standard Package: 500
