Same model may have multiple batches, images only for reference.

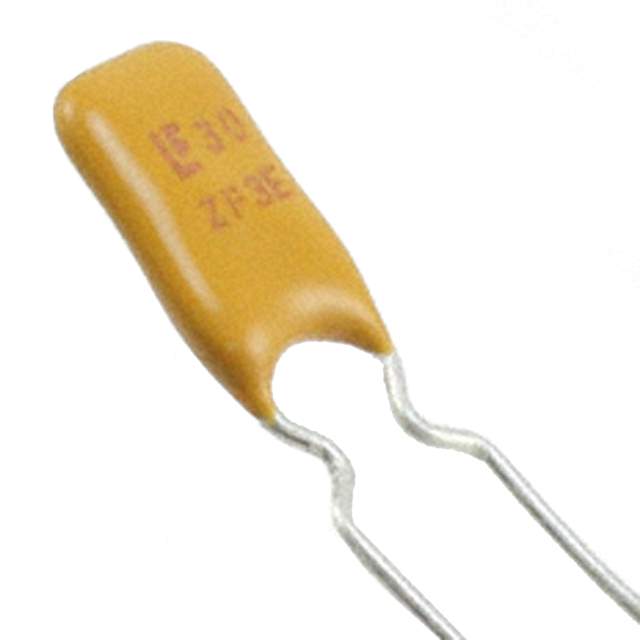

30R090UPR Real Image
Same model may have multiple batches, images only for reference.

30R090UPR

Part No 30R090UPR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 900MA RADIAL  /  Polymeric PTC Resettable Fuse 30V 900 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 30R
Package Cut Tape (CT),Tape & Box (TB)
Type Polymeric
Voltage - Max 30V
Current - Max 40 A
Current - Hold (Ih) (Max) 900 mA
Current - Trip (It) 1.8 A
Time to Trip 5.9 s
Resistance - Initial (Ri) (Min) 70 mOhms
Resistance - Post Trip (R1) (Max) 220 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.291" L x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Max) 0.480" (12.20mm)
Lead Spacing 0.201" (5.10mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names 030R0090WR,F1977CT,F1977TB,R30R090,030R0090WR-ND
Standard Package 2,000
Win Source Part Number 983694-30R090UPR
Ultra Librarian 3D Model Ultra Librarian 30R090UPR CAD Model

Description

The Littelfuse Inc. 30R090UPR is a polymeric resettable fuse that is commonly used in electronic circuits to protect against overcurrent.

  • Maximum Voltage Rating: 30V
  • Maximum Current Rating: 40A
  • Time to Trip: 5.9s
  • Resistance (initial): 70 mOhms
  • Resistance (post trip): 220 mOhms
  • Height: 0.480" (12.20mm)
  • Thickness: 0.291" L x 0.118" W (7.40mm x 3.00mm)
  • Package/Case: radial, disc
  • Lead Spacing: 0.201" (5.10mm)
  • RoHS Compliant: true
  • Alternative Names: 030R0090WR, F1977CT, F1977TB, R30R090, and 030R0090WR-ND
  • Approvals: cURus and TUV
