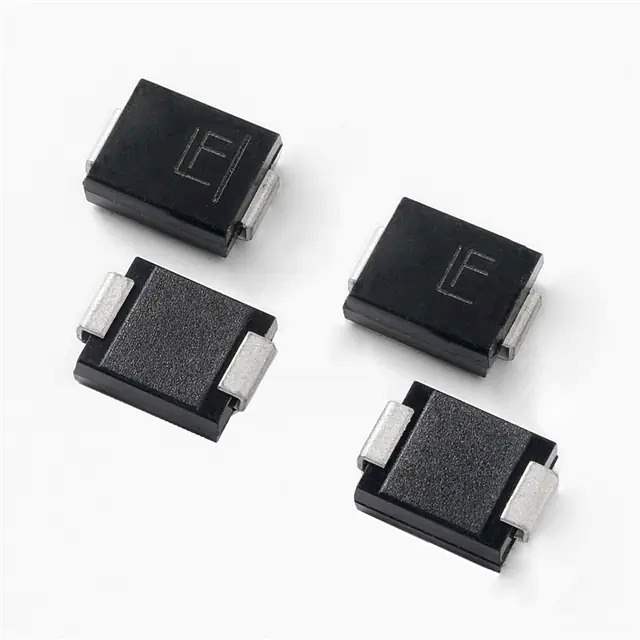

3.0SMCJ24A Real Image
Same model may have multiple batches, images only for reference.

3.0SMCJ24A

Part No 3.0SMCJ24A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 3000W UNI DO-214AB 24V
Datasheet
3.0SMCJ24A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series 3.0SMCJ
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 38.9V
Current - Peak Pulse (10/1000µs) 77.1A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications Telecom
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Base Product Number 3.0SMCJ
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 545236-3.0SMCJ24A
Ultra Librarian 3D Model Ultra Librarian 3.0SMCJ24A CAD Model

Description

The 545236-3.0SMCJ24A is a TVS diode from the 3.0SMCJ series.

  • Type: TVS diode
  • Series: 3.0SMCJ
  • Diode Type: Zener
  • Application: Telecom
  • Package: Tape and Reel
  • Reverse Standoff Voltage: 24V
  • Breakdown Voltage: 26.7V
  • Clamping Voltage @ Peak Pulse Current: 38.9V
  • Peak Pulse Power: 3000W (3kW)
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AB (SMC)
  • Operating Temperature: -65°C to 150°C
  • Manufacturer: Littelfuse Inc.
  • Compliance: California Prop 65 compliant
