Same model may have multiple batches, images only for reference.

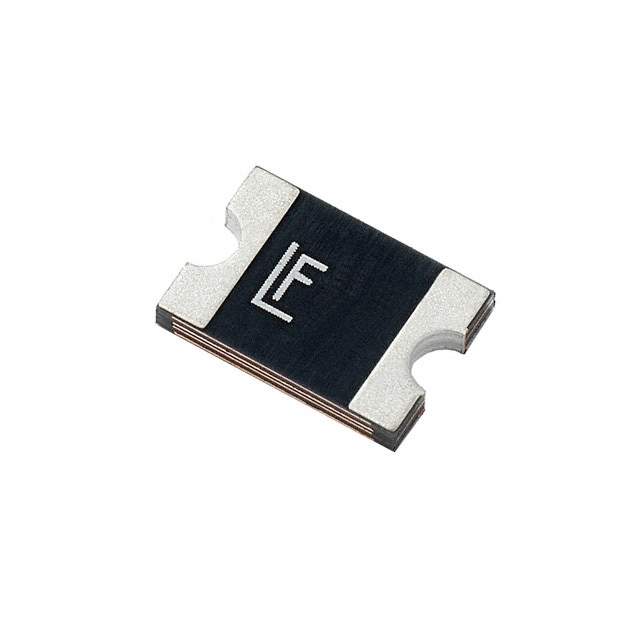

2920L260/24DR Real Image
Same model may have multiple batches, images only for reference.

2920L260/24DR

Part No 2920L260/24DR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 2.6A 2920
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 24V
Current - Max 40A
Current - Hold (Ih) (Maximum) 2.6A
Current - Trip (It) 5A
Time to Trip 10s
Resistance - Initial (Ri) (Min) 25 mOhms
Resistance - Post Trip (R1) (Maximum) 75 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2920 (7351 Metric), Concave
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Maximum) 0.049"
Approvals cURus, TUV
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801059-2920L260/24DR
Ultra Librarian 3D Model Ultra Librarian 2920L260/24DR CAD Model

Description

The Littelfuse Inc. 801059-2920L260/24DR is a high-popularity electronic component.

  • Mounting: SMD
  • Approvals: cURus and TUV
  • Maximum Voltage: 24V
  • Current Rating: 40A
  • Trip Current: 5A
  • Time to Trip: 10s
  • Resistance: 25 mOhms
  • Post-Trip Resistance: 75 mOhms
  • Win Source Part Number: 801059
  • Supply and Demand Status: Sufficient
