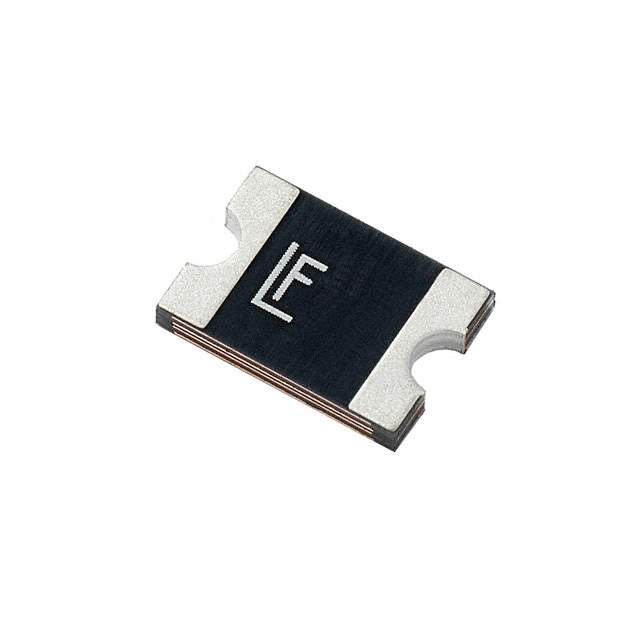

2920L200DR Real Image
Same model may have multiple batches, images only for reference.

2920L200DR

Part No 2920L200DR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 15V 2A SMD 2920
Datasheet
2920L200DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 40A
Current - Hold (Ih) (Max) 2A
Current - Trip (It) 4A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 50 mOhm
Resistance - Post Trip (R1) (Max) 125 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.289" L x 0.202" W (7.35mm x 5.12mm)
Thickness (Max) 0.049" (1.25mm)
Approvals cURus, TUV
Win Source Part Number 005628-2920L200DR
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Automotive, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian 2920L200DR CAD Model

Description

Product Overview

The 2920L200DR is a versatile resettable fuse engineered to safeguard electronic circuits from overcurrent events. Featuring a holding current of 2.0 A and a voltage rating suitable for various low-voltage applications, it ensures reliable circuit protection.

Features and Benefits

  • Robust overcurrent protection
  • Designed to operate in harsh environments
  • Eco-friendly and cost-effective resettable solution
  • Minimal downtime due to resettable feature

Applications

  • Battery-powered devices
  • USB peripherals
  • Diagnostic equipment
  • Industrial control systems
