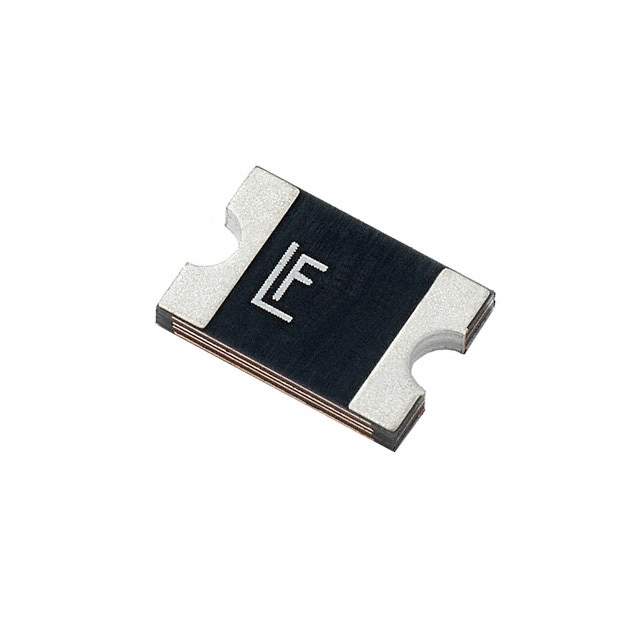

2920L110/60MR

Part No 2920L110/60MR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 1.1A 2920
Datasheet
2920L110/60MR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 60V
Current - Max 20A
Current - Hold (Ih) (Maximum) 1.1A
Current - Trip (It) 2.2A
Time to Trip 500ms
Resistance - Initial (Ri) (Min) 120 mOhms
Resistance - Post Trip (R1) (Maximum) 410 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2920 (7351 Metric), Concave
Dimension 0.289" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Maximum) 0.079" (2.00mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806880-2920L110/60MR
Ultra Librarian 3D Model Ultra Librarian 2920L110/60MR CAD Model

Description

The Littelfuse Inc. 806880-2920L110/60MR electronic component from Littelfuse Inc. is a high-quality polymeric type component that is designed to deliver reliable performance.

  • Mounting Style: SMD
  • Approvals: cURus, TUV
  • Maximum Voltage: 60V
  • Maximum Current: 20A
  • Current Trip: 2.2A
  • Time to Trip: 500ms
  • Temperature Range: -40°C to 85°C
  • Size: 0.289" L x 0.202" W (7.36mm x 5.12mm)
  • Resistance: 120 mOhms
  • Manufacturer Package: 2920 (7351 Metric), Concave
