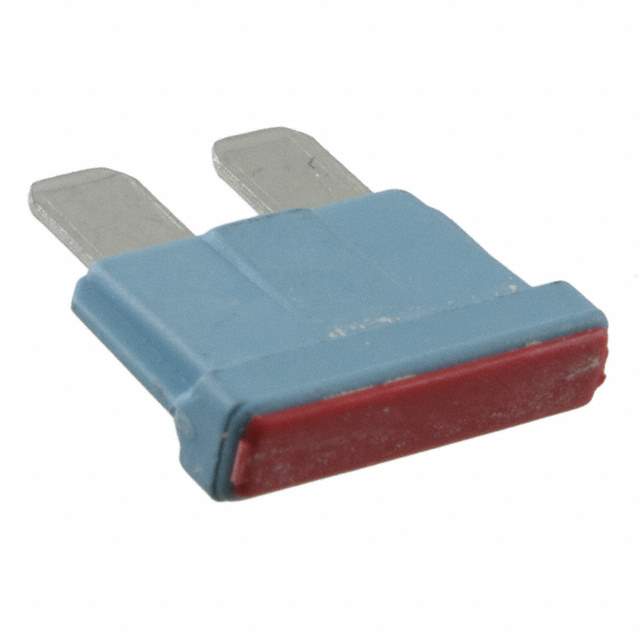

166.7000.5152 Real Image
Same model may have multiple batches, images only for reference.

166.7000.5152

Part No 166.7000.5152
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTOMOTIVE 15A 80VDC BLADE / FKS ATO STYLE BLADE FUSE RATED 80V UL 248 Special Purpose Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 15A
Voltage Rating - DC 80V
Response Time Slow Blow
Manufacturer Package Blade, ATO/ATC
Mounting Style Holder
Breaking Capacity at Rated Voltage 1kA
Melting I2t 162
Approvals cULus
Color Blue
Dimension 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm)
DC Cold Resistance 0.0046 Ohms
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810020-166.7000.5152
Ultra Librarian 3D Model Ultra Librarian 166.7000.5152 CAD Model

Description

The Littelfuse Inc. 810020-166.7000.5152 is an automotive blade fuse that is designed to protect electronic devices from overcurrent.

  • Voltage Rating: 80V
  • Current Rating: 15A
  • DC Cold Resistance: 0.0046 Ohms
  • Melting I2t: 162
  • Approvals: cULus
  • Package: Blade, ATO/ATC
  • Packaging: Bulk (500 units)
  • Temperature Range: -
